problem: static equilibria of elastic rods
An elastic rod can be described by (r(s),d1(s),d2(s),d3(s)),
where:
s is arclength along the rod,
the centerline r(s)
in R3 runs through the centers of mass of the rod cross-sections,
the frames (d1(s),d2(s),d3(s))
in SO(3) are the principal axes of inertia of the rod cross-sections.
If the rod is inextensible, then d3(s) = r'(s), so the rod
is completely specified by r(s) (shown below as a green tube) and a normal
vector field d1(s) tracking the rod's twist (depicted below
as a blue ribbon).
The energy of a rod configuration is a functional of the form:
I have been studying the possible equilibrium configurations of an
inextensible rod subject to various boundary constraints; for example,

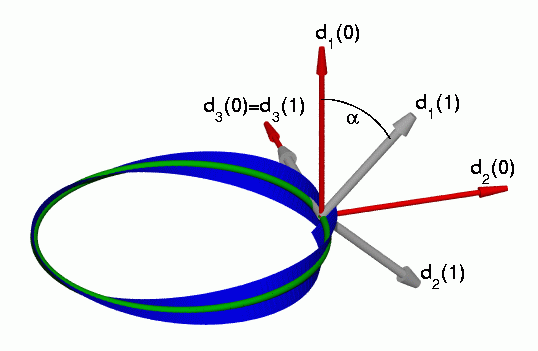

the twisted ring, in which the centerline closes smoothly and the ribbon
forms an angle
at the point
of closure (see below). Mathematically, this is a calculus of variations
problem: we seek critical points of the functional E subject to prescribed
boundary conditions on (r,di). These critical points are found
via the classic Euler-Lagrange equations for E, which yield a two-point
boundary value problem for a system of ODEs. Since we want to solve this
2-point BVP as various parameters are varied (either
or various parameters appearing in W), our numerical computations use the
parameter-continuation package AUTO
.
The energy functional
The function W incorporates all material-dependent properties (e.g., intrinsic
curvature, bending stiffnesses, twisting stiffness). For example, a common
energy model used today is:
where the strains ui are defined by:
and the expression
denotes
the strains defined from the rod's intrinsic shape. Thus,
and
describe intrinsic curvatures
while
describes intrinsic
twist. The coefficients Ki are called the stiffnesses
of the rod (bend stiffnesses for i=1,2 and twist stiffness for i=3). The
computations described below can be easily extended to more elaborate energy
models, such as ones with higher-than-quadratic terms or twist-bend coupling.
For the simplest case in which Ki are independent of s, K1=K2,
and the
are 0, which we call
the perfect rod (physically: uniform, circular cross-section, and
intrinsically straight), the set of solutions to the twisted ring problem
is highly symmetric. As
varies

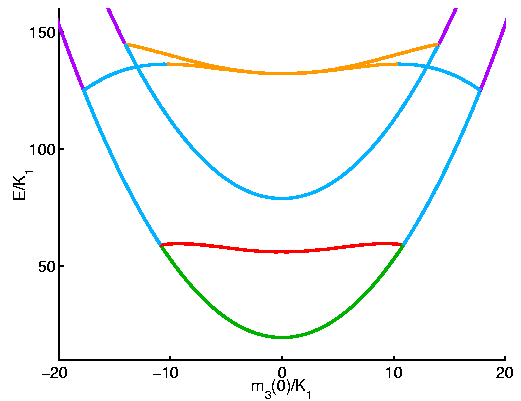

the solutions sweep out the bifurcation diagram shown below. The energy
of each solution is plotted against the torque m3 at s=0 (both
scaled to be unitless). Coloring indicates stability of the solutions,
with green denoting local minima of E, red denoting saddles with one negative
direction, etc. (see section on stability below for further information).
Degenerate orbits of solutions to the perfect problem (cf. Manning
& Maddocks, 1998 )
Due to symmetries of the perfect rod, each point on the above bifurcation
diagram actually represents an entire manifold (or orbit) of twisted
ring solutions (all with the same energy and torque). For example, see
below. Here, we take a given rod equilibrium, and in Step 1 do a rigid-body
rotation by an angle
(about
45 degrees in this case), and in Step 2 rotate the rod at every point about
its tangent vector by
.
In the end, we will still be at an equilibrium of the energy (because of
the isotropy of the rod) and the boundary conditions on r and di
are the same as in the original.
On the parabolic branches in the perfect diagram, the orbit of degenerate
solutions is homeomorphic to a circle (generated by the operation shown
above for 0
).
On the other branches, the orbit is homeomorphic to a torus (generated
by the operation shown above for 0
,
plus another operation relating to translation of the rod along its arclength).
Splitting of bifurcation diagram for imperfect problems (cf. Manning
& Maddocks, 1998 )
If we remove the symmetries of the perfect rod, say by introducing intrinsic
curvature into the rod, then the orbits of degenerate solutions for the
perfect rod yield in general a finite set of solutions, each with different
energy, to the imperfect problem. In fact, through a perturbation computation,
we have determined exactly which points on the orbit yield solutions to
the imperfect problem. Most commonly, the parabolic branches in the perfect

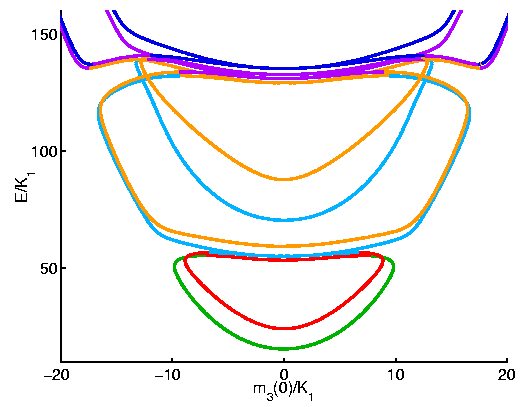

diagram (whose orbits are circles) yield 2 branches in the imperfect diagram,
while the remaining branches (whose orbits are tori) yield 4 branches.
See for example, the diagram below.
We can make even stronger statements using the perturbation expansion.
For example, for infinitesimal intrinsic curvatures
,
a solution on a parabolic branch in the perfect diagram always yields
two solutions in the imperfect diagram, unless the following two conditions
hold:
For non-infinitesimal perturbations, and especially those nearly satisfying
the above conditions, the nice "generic" splitting shown above need not
occur. Thus, the perturbation expansion suggests which intrinsic shapes

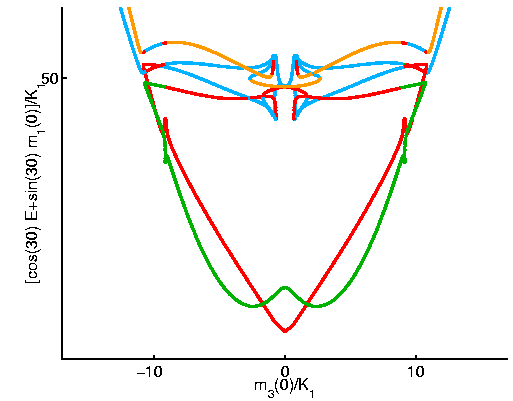

will lead to more unusual imperfect diagrams. See for example, the diagram
below. To better illustrate the unusual splitting, just the bottom portion
of the diagram is shown, and a combination of energy and bending moment
m1 is plotted on the y axis.
In the category of half-science, half-entertainment, here are a few
movies demonstrating the transition from perfect to imperfect diagrams.
Be forewarned that they're somewhat large (400 KB to 1 MB).
Movie 1: a superposition of the perfect
diagram (in red) and an imperfect diagram (in purple and yellow) as the
imperfection (which in this case intrinsic curvature of a 157-base-pair
DNA) is gradually turned on. As above, energy is plotted against m3.
Movie 2: same as Movie 1 (but without
the perfect diagram superimposed) for a larger imperfection representing
protein-bound DNA. The dots mark solutions for which d1(0)=d1(1).
Movie 3: same as Movie 2, except
that m3 is plotted versus
.
The above computations were all made by solving the Euler-Lagrange equilibrium
equations for the elastic rod numerically. Therefore, the computed equilibria
are critical points of the strain energy functional but not necessarily
stable local minima. We have thus designed a conjugate point test
which determines a necessary condition for a given equilibrium to be a
local minimum. This test is a generalization of the standard Jacobi/Morse
conjugate point theory in the unconstrained calculus of variations to the
isoperimetrically constrained calculus of variations problem which describes
the twisted ring. The number of conjugate points is called the index,
and should give the number of downward-turning directions on the potential
energy surface in the neighborhood of the critical point (assuming the
appropriate sufficiency conditions hold in addition to the necessary condition
we have just discussed)
In the diagrams above, the index is denoted by color: green = 0 (local
minimum), red = 1 (saddle with one downward-turning direction), light blue
= 2, orange = 3, purple = 4, and dark blue = 5.
In the perfect diagram, each critical point on a parabolic branch also
contains a single flat direction (in addition to the number of downward-turning
directions indicated by the color); this flat direction arises exactly
because of the existence of a degenerate orbit of solutions. When a perturbation
is added, this flat direction can either turn upward or downward. Thus,
in the generic imperfect diagram, one of the two children of the perfect
parabolic branches always has the same index as the corresponding perfect
branch (in this case, the flat direction perturbed to an upward-turning
direction), whereas the other child has index one higher (in this case,
the flat direction perturbed to a downward-turning direction).
Similarly, critical points on the nonparabolic branches contain two
flat directions. In the generic imperfect diagram, one of the four children
has the same index as in the perfect diagram (both flat directions perturb
up), two of the children have index one higher (one flat direction perturbs
up, one down), and the remaining child has index two higher (both flat
directions perturb down).
Self-contact
An ongoing project is to extend the above equilibrium and stability computations
to incorporate rod self-contact. The mathematics and computation are significantly
more challenging since integro-differential equations are involved. With
self-contact incorporated, a rich variety of equilibrium structures will
be possible, including stable knotted configurations and self-interwound
plectonemes.
