NCC cgDNA+min: Widom 601 sequence
Non-continuous closure cgDNA+min results for the 4 initial guesses highlighted in the following bifurcation diagram:

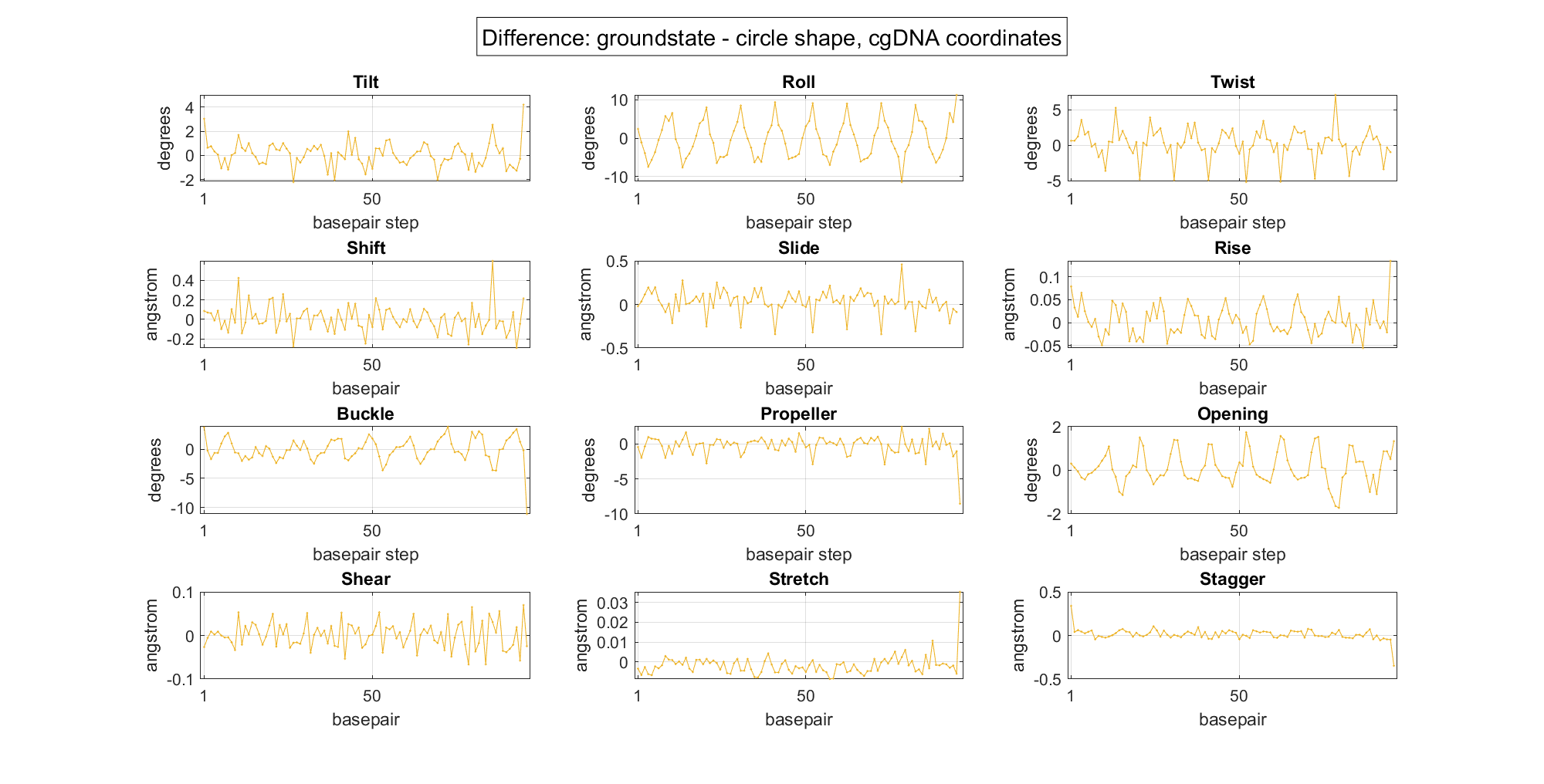

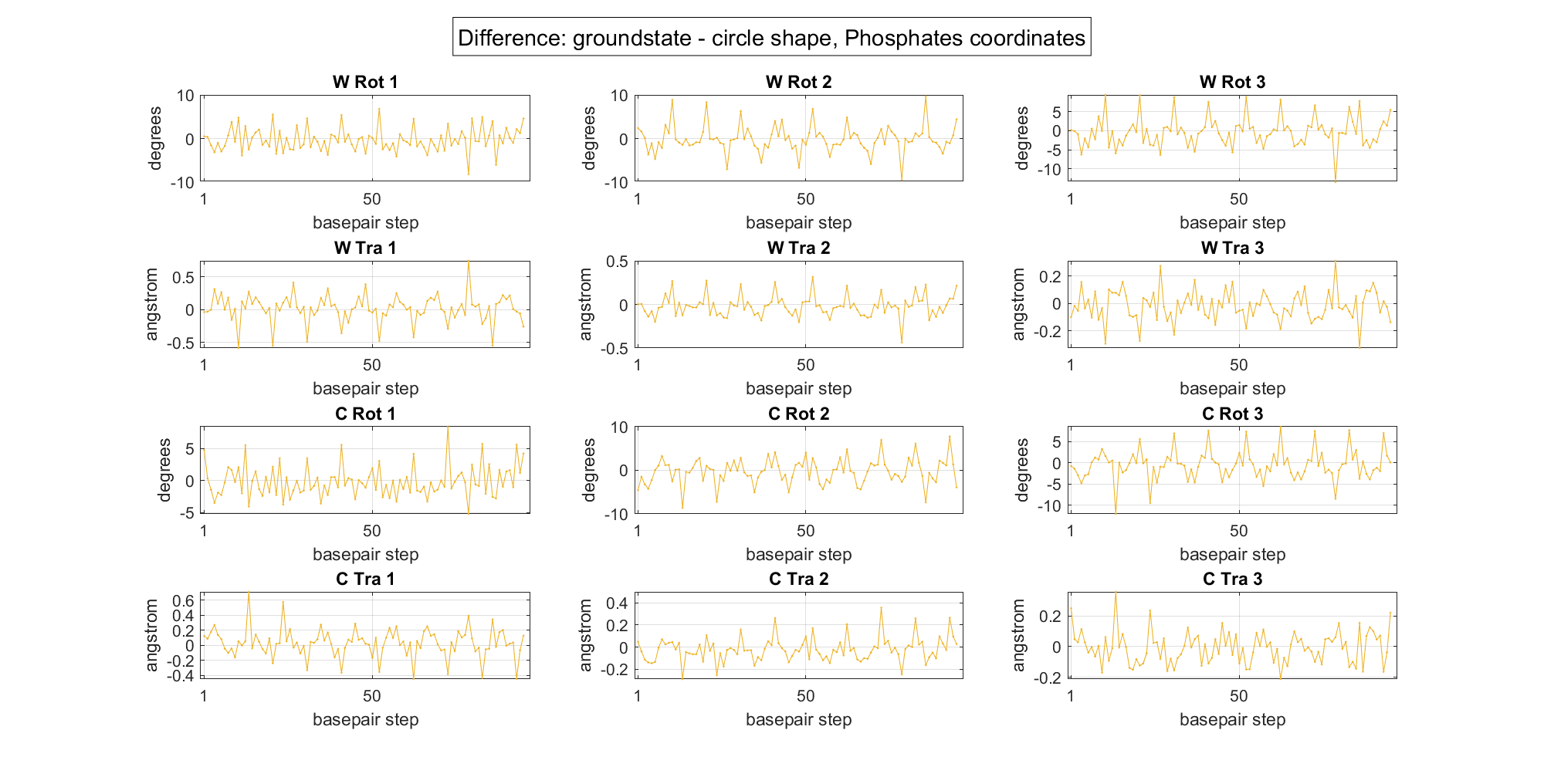

Solution for initial guess A:
| Link | Energy | Smallest Eigenvalue | |
| Initial guess A | 9 | 2861 | - |
| Solution A | 9 | 77 | 1.87e-5 |
MATLAB figures and saved variables:

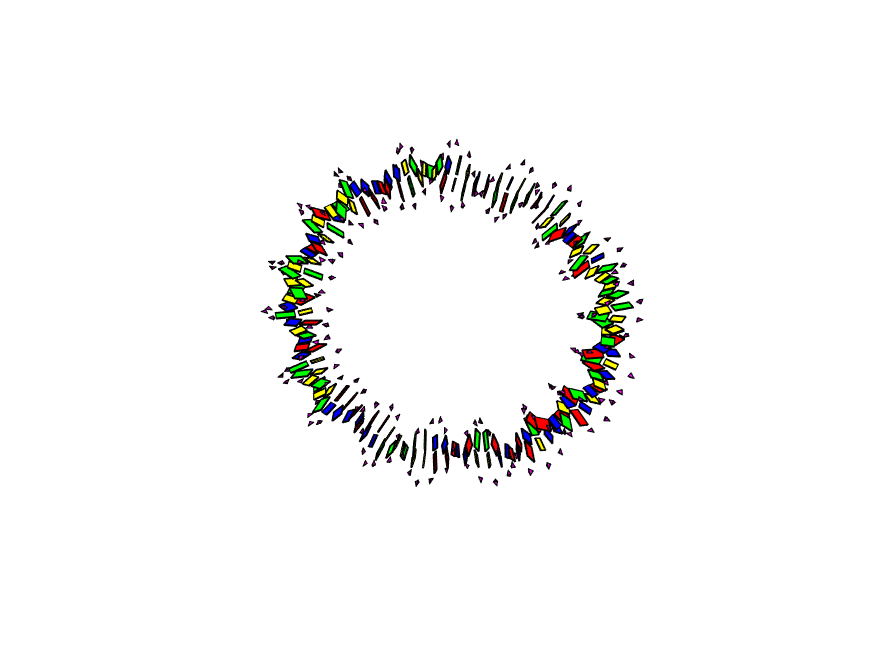

Widom_3Dsol1_NCCcgDNA+min.fig

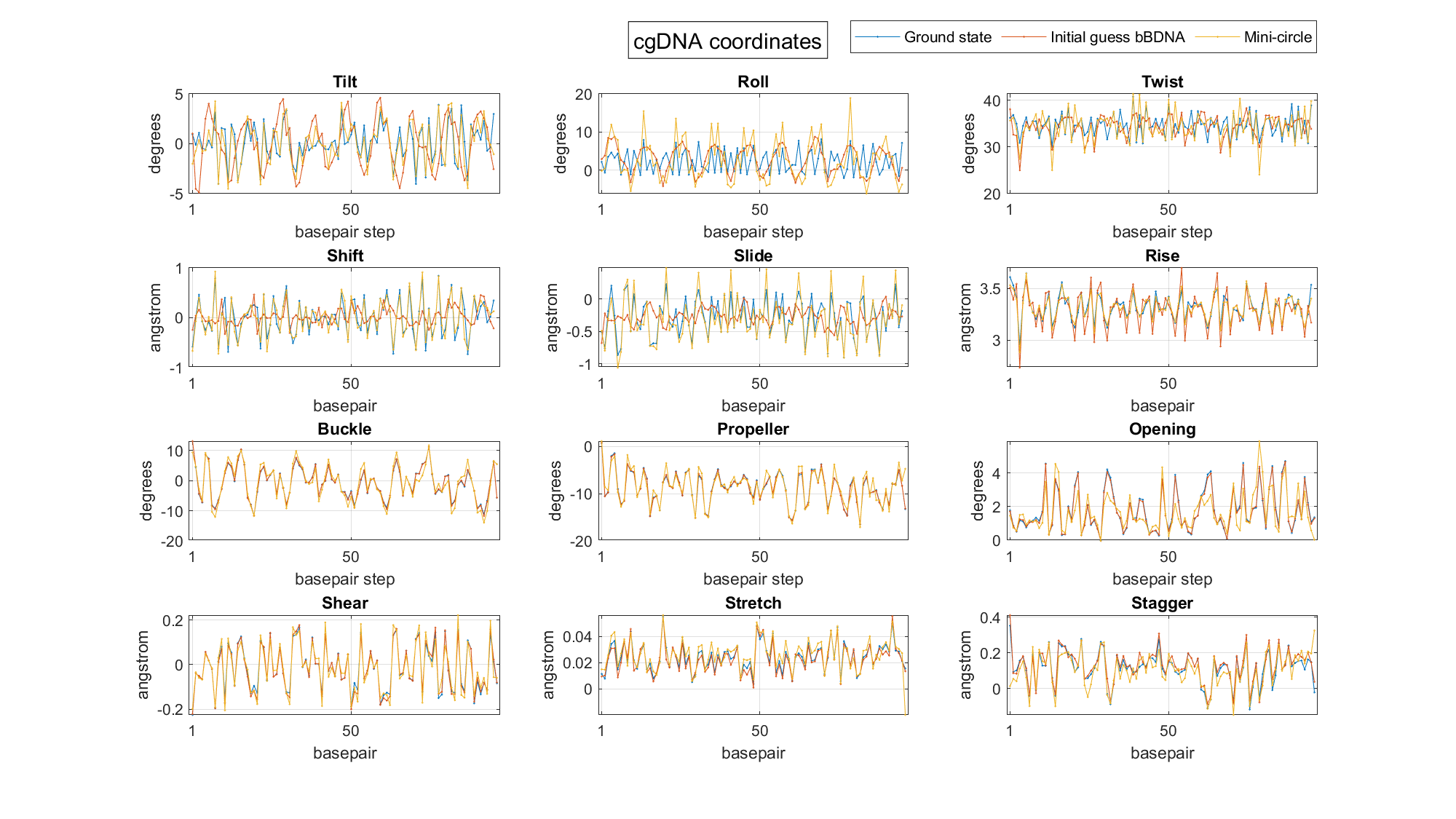

Widom_2Dsol1_NCCcgDNA+min_cgDNA-coord.fig
Widom_2Dsol1_NCCcgDNA+min_Pho-coord.fig
Widom_sol1_NCCcgDNA+min.mat

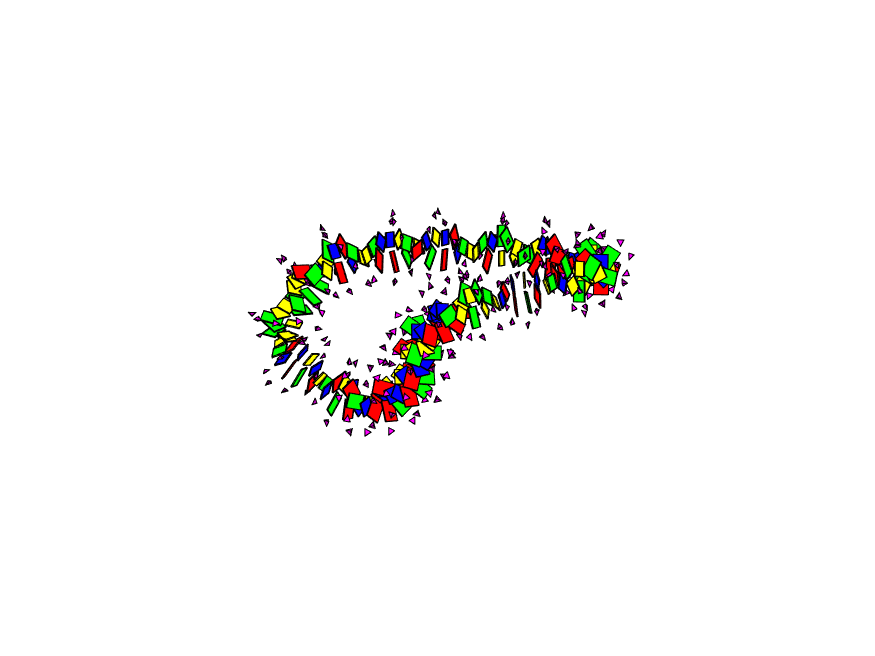

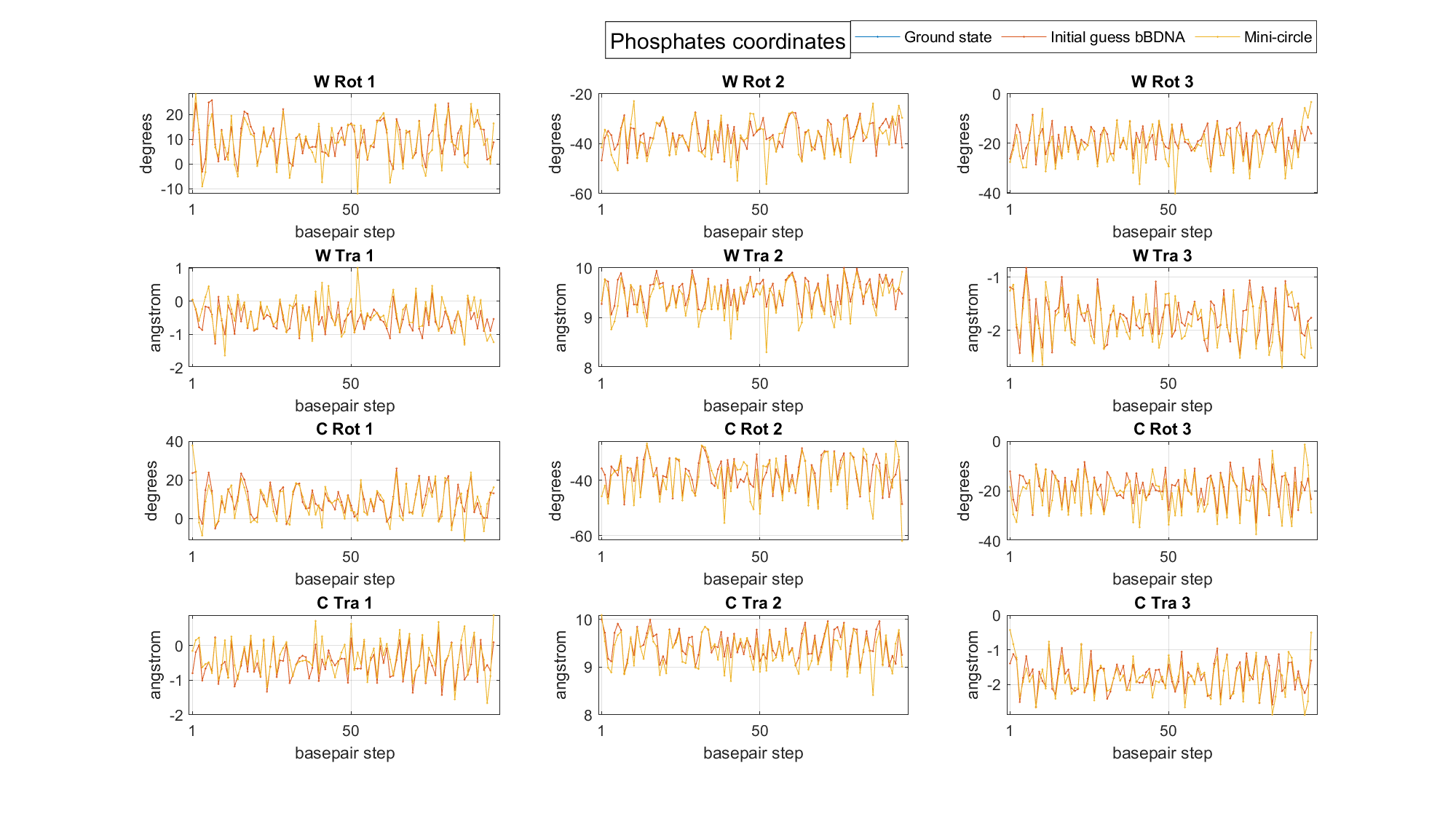

Solution for initial guess B:
| Link | Energy | Smallest Eigenvalue | |
| Initial guess B | 8 | 4327 | - |
| Solution B | 10 | 212 | 1.19e-5 |
MATLAB figures and saved variables:
Widom_3Dsol2_NCCcgDNA+min.fig

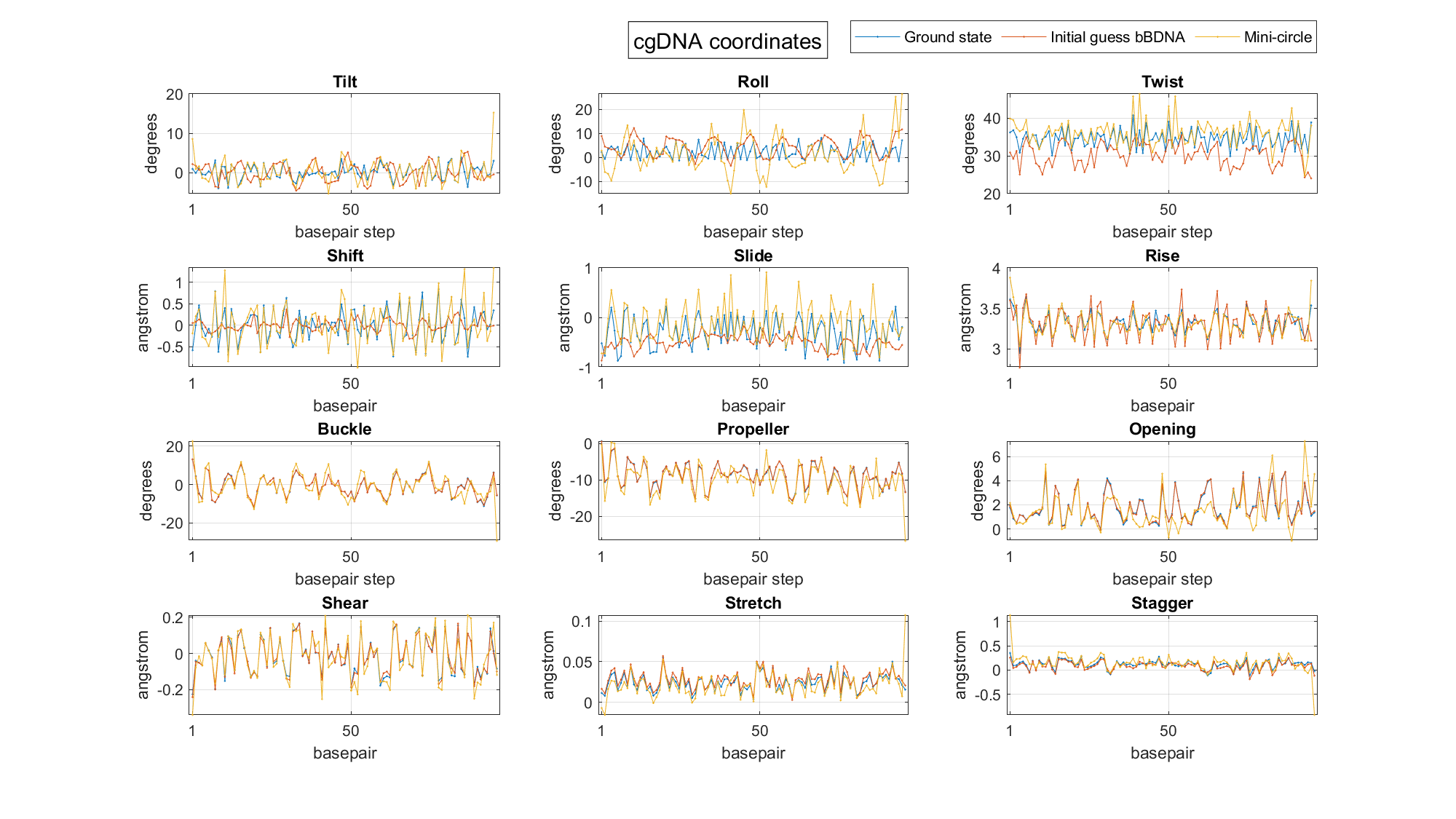

Widom_2Dsol2_NCCcgDNA+min_cgDNA-coord.fig
Widom_2Dsol2_NCCcgDNA+min_Pho-coord.fig
Widom_sol2_NCCcgDNA+min.mat

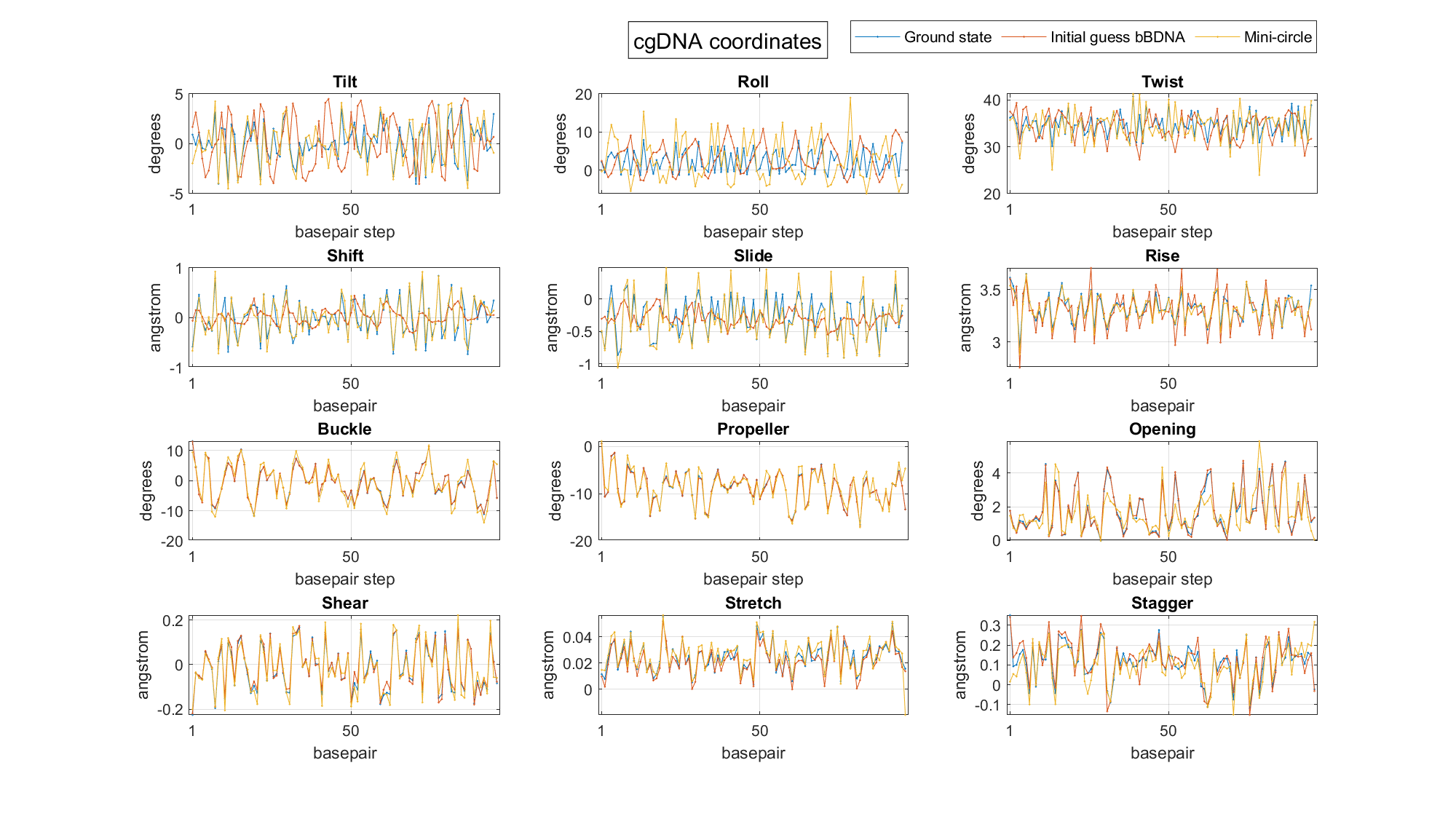

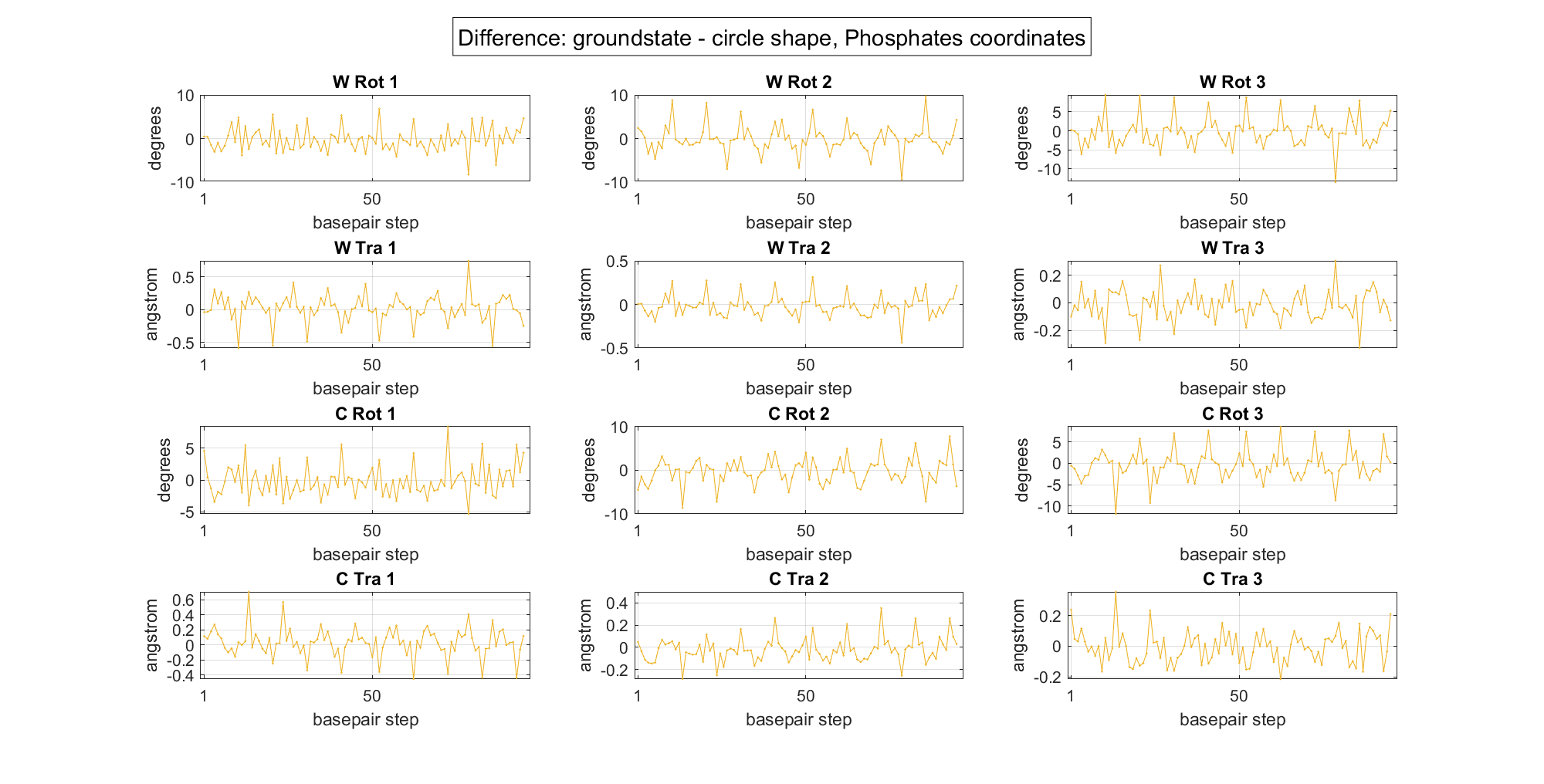

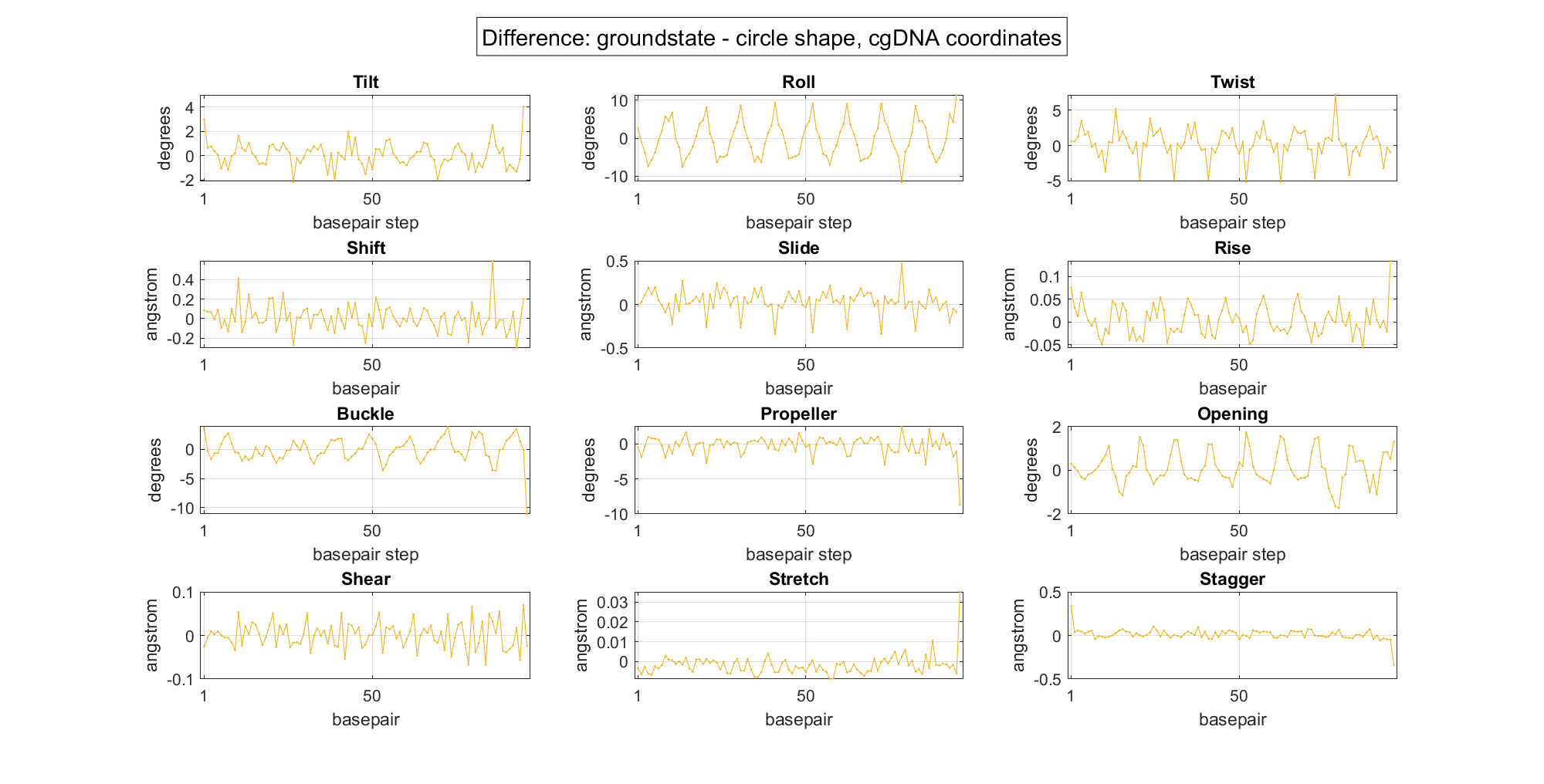

Solution for initial guess C:
| Link | Energy | Smallest Eigenvalue | |
| Initial guess C | 9 | 2958 | - |
| Solution C | 9 | 77 | 1.83e-5 |
MATLAB figures and saved variables:

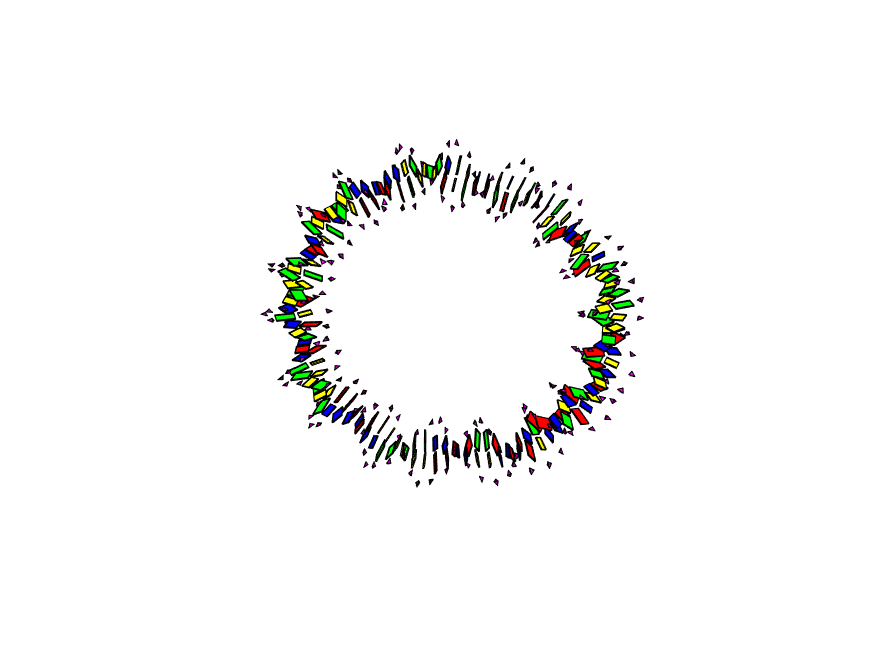

Widom_3Dsol3_NCCcgDNA+min.fig
Widom_2Dsol3_NCCcgDNA+min_cgDNA-coord.fig

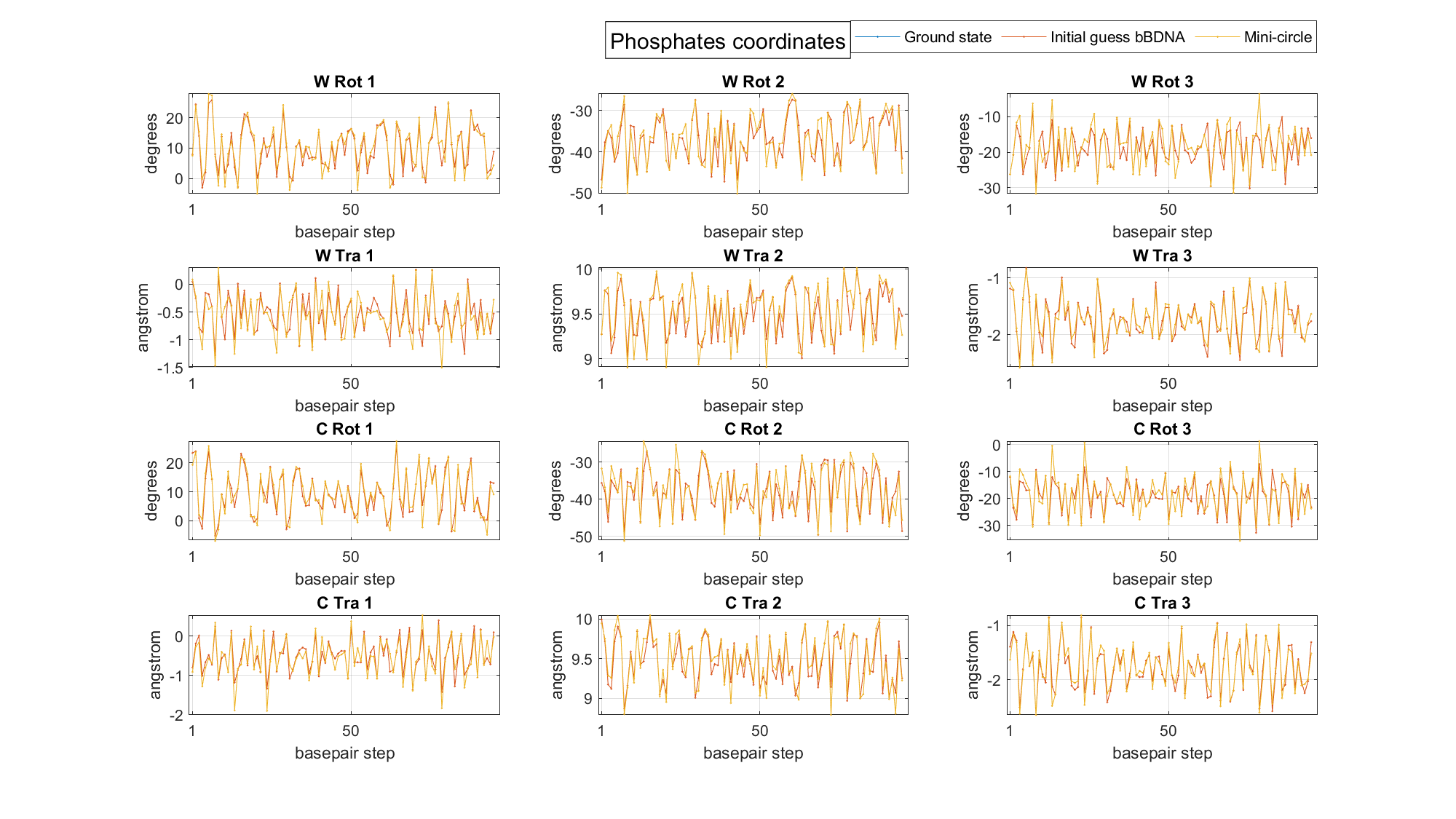

Widom_2Dsol3_NCCcgDNA+min_Pho-coord.fig
Widom_sol3_NCCcgDNA+min.mat

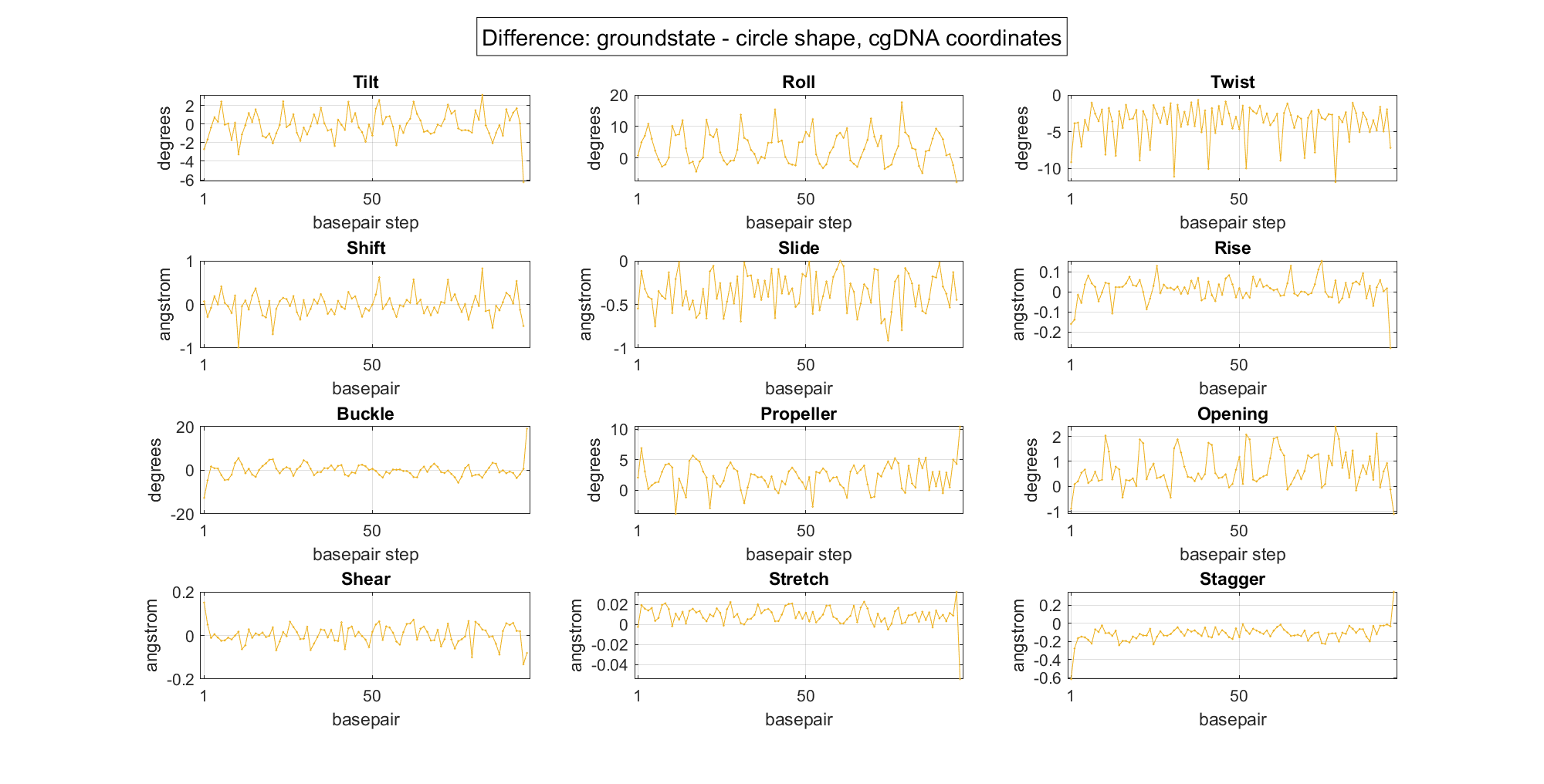

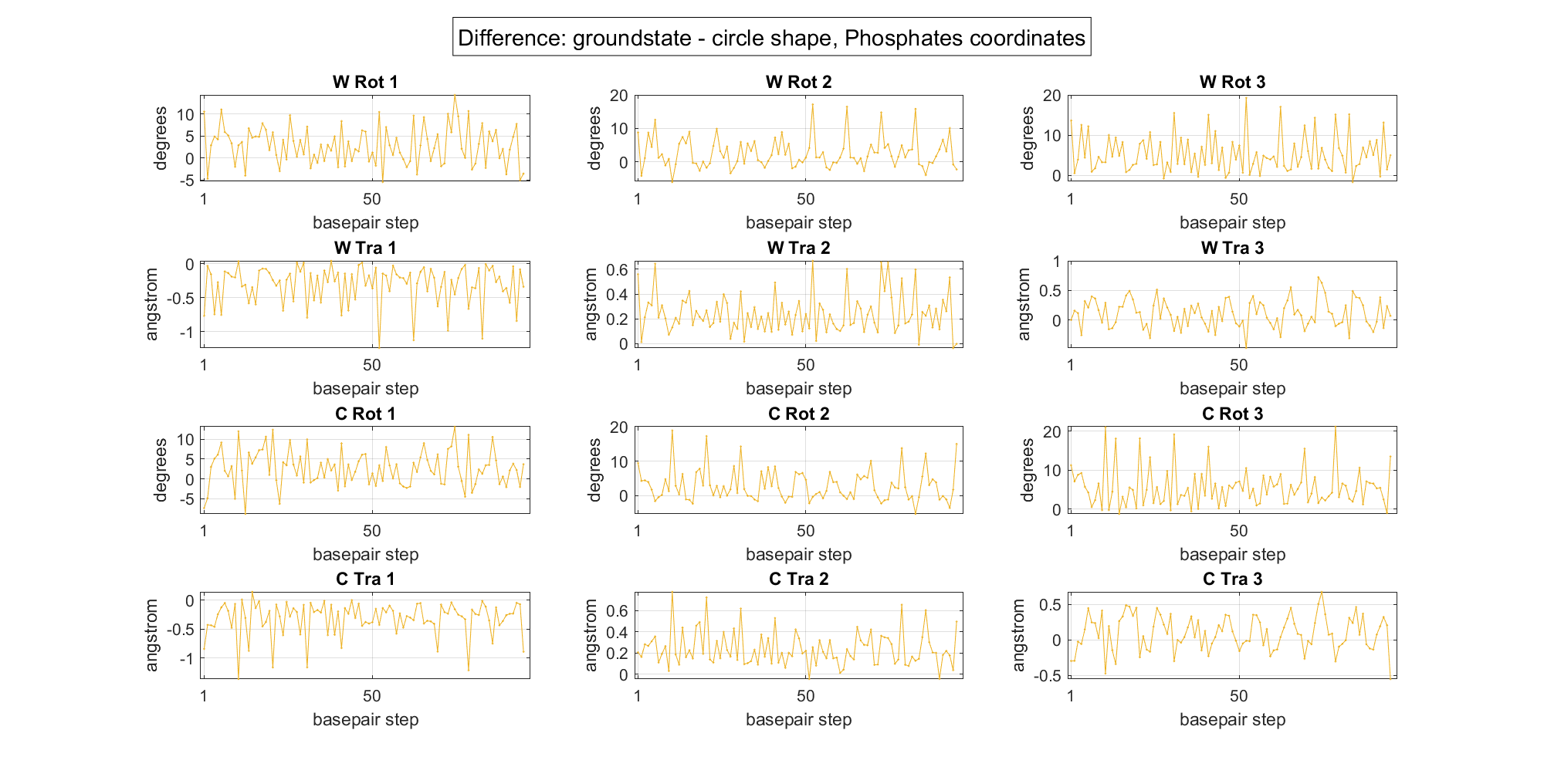

Solution for initial guess D:
| Link | Energy | Smallest Eigenvalue | |
| Initial guess D | 8 | 4293 | - |
| Solution D | 10 | 213 | 5.8e-5 |
MATLAB figures and saved variables:

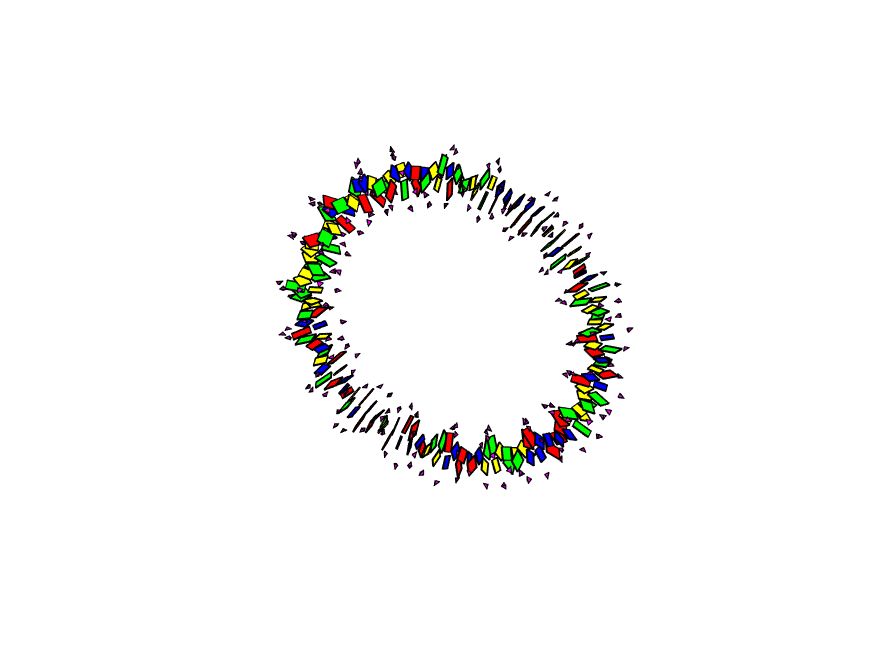

Widom_3Dsol4_NCCcgDNA+min.fig

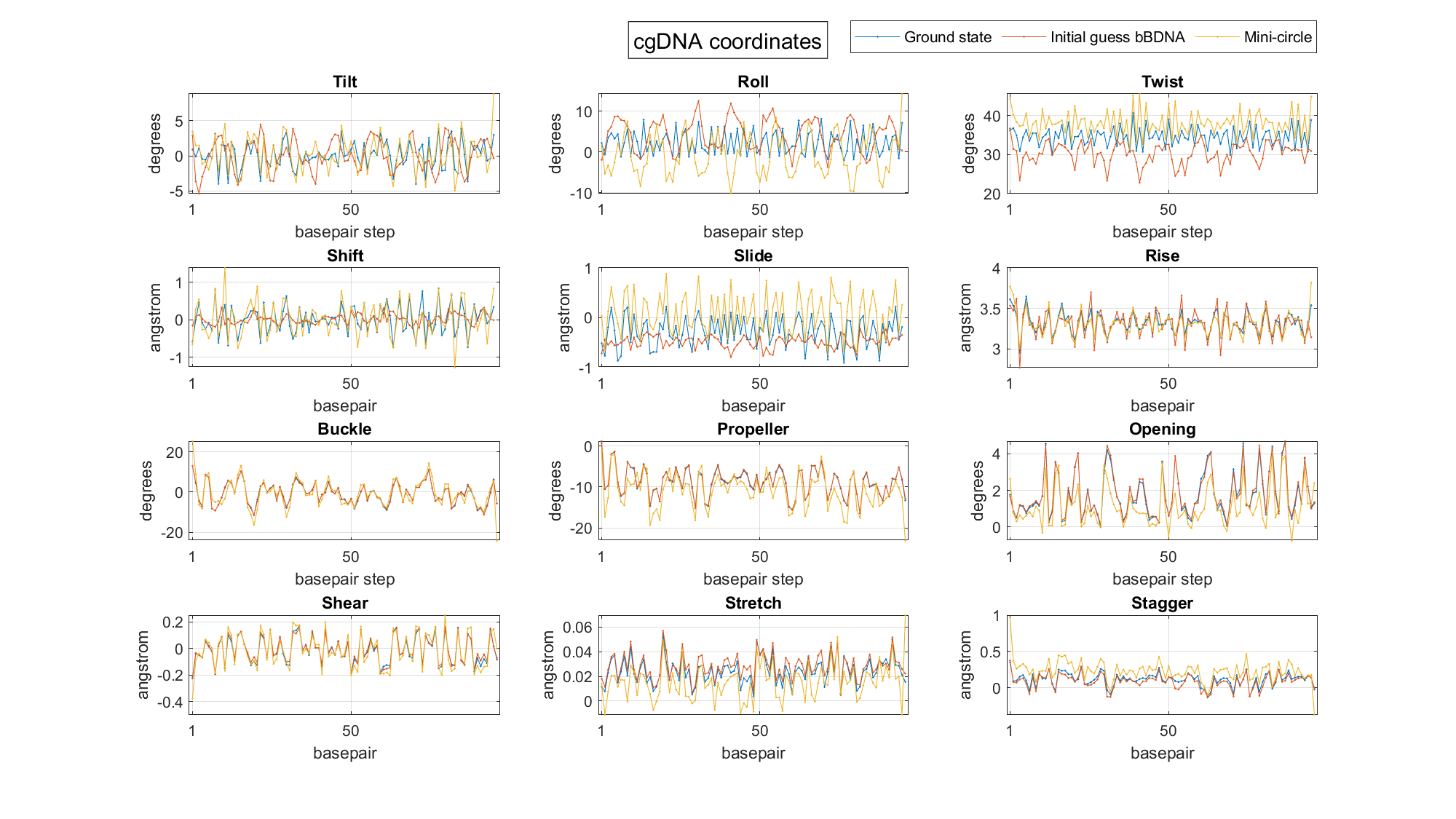

Widom_2Dsol4_NCCcgDNA+min_cgDNA-coord.fig

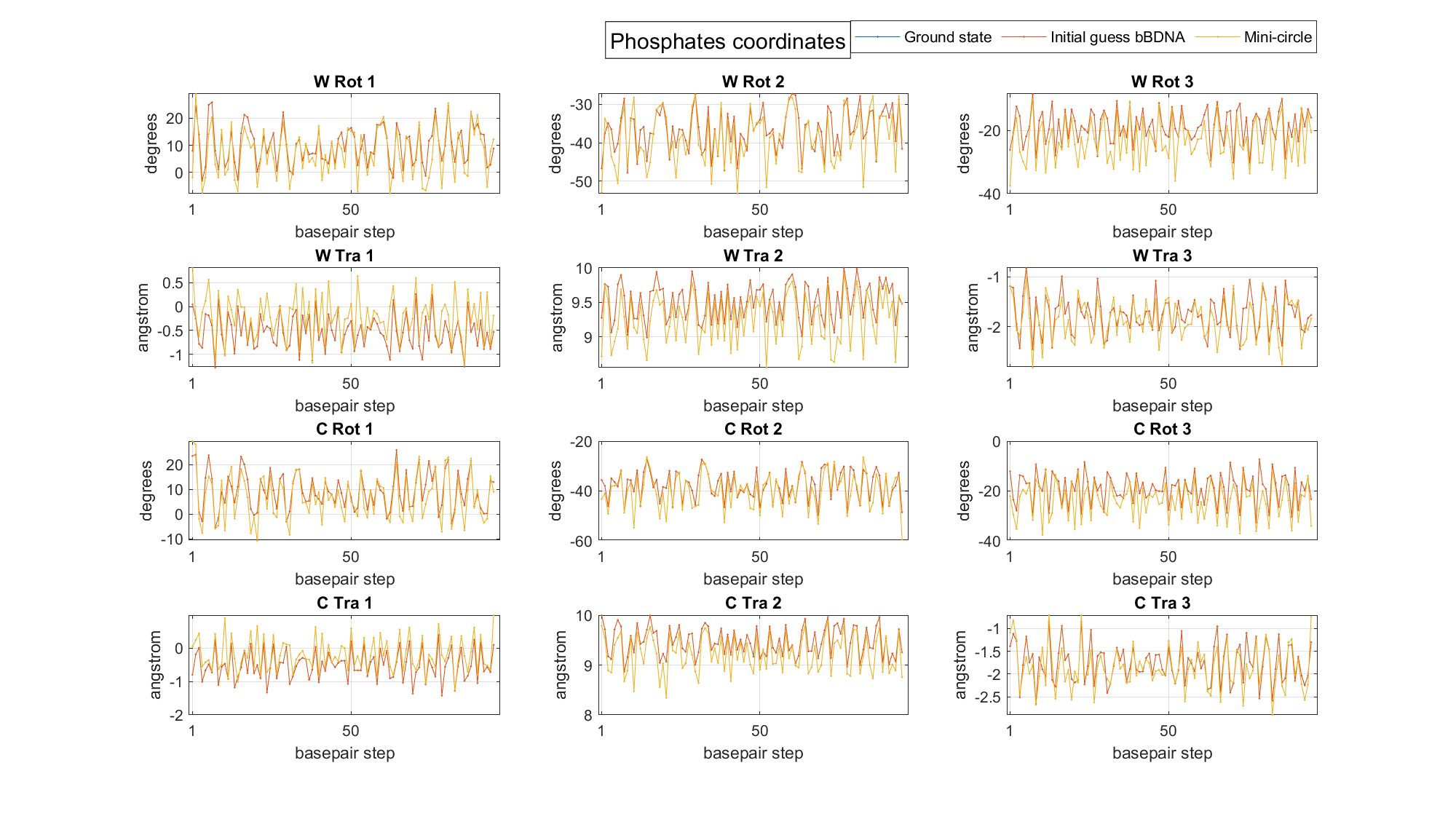

Widom_2Dsol4_NCCcgDNA+min_Pho-coord.fig
Widom_sol4_NCCcgDNA+min.mat
