PC cgDNA+min: Widom 601 sequence

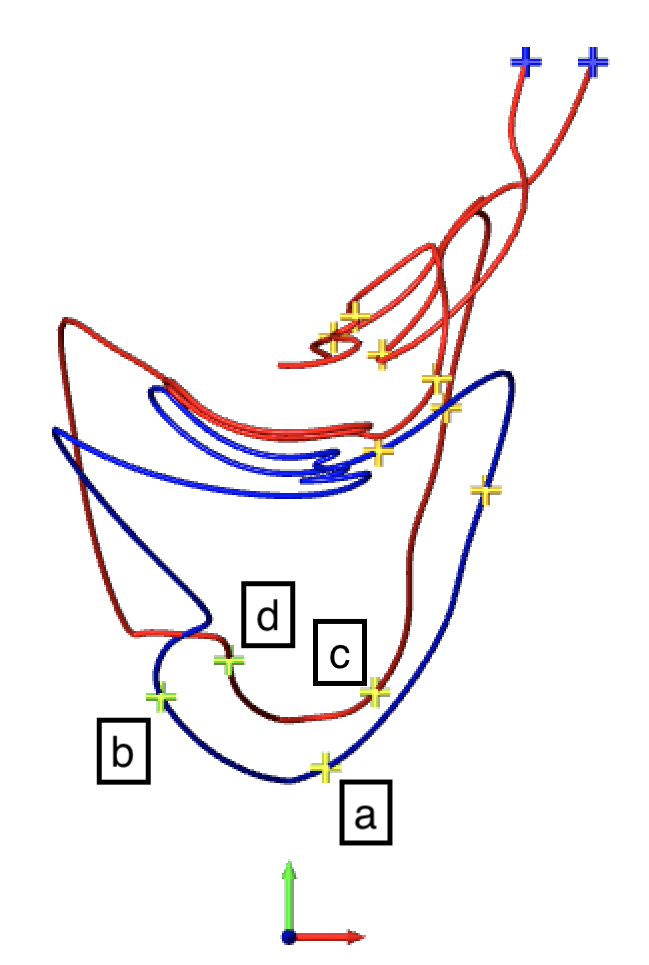

Periodic closure cgDNA+min results for the 4 initial guesses highlighted in the following bifurcation diagram:

We immediately see that the smallest eigenvalue of the Hessian is negative in cases A and B. This means that the shown configurations are not a proper minimizer. All solutions are different, this can be seen by the inspection of the link and the energy.

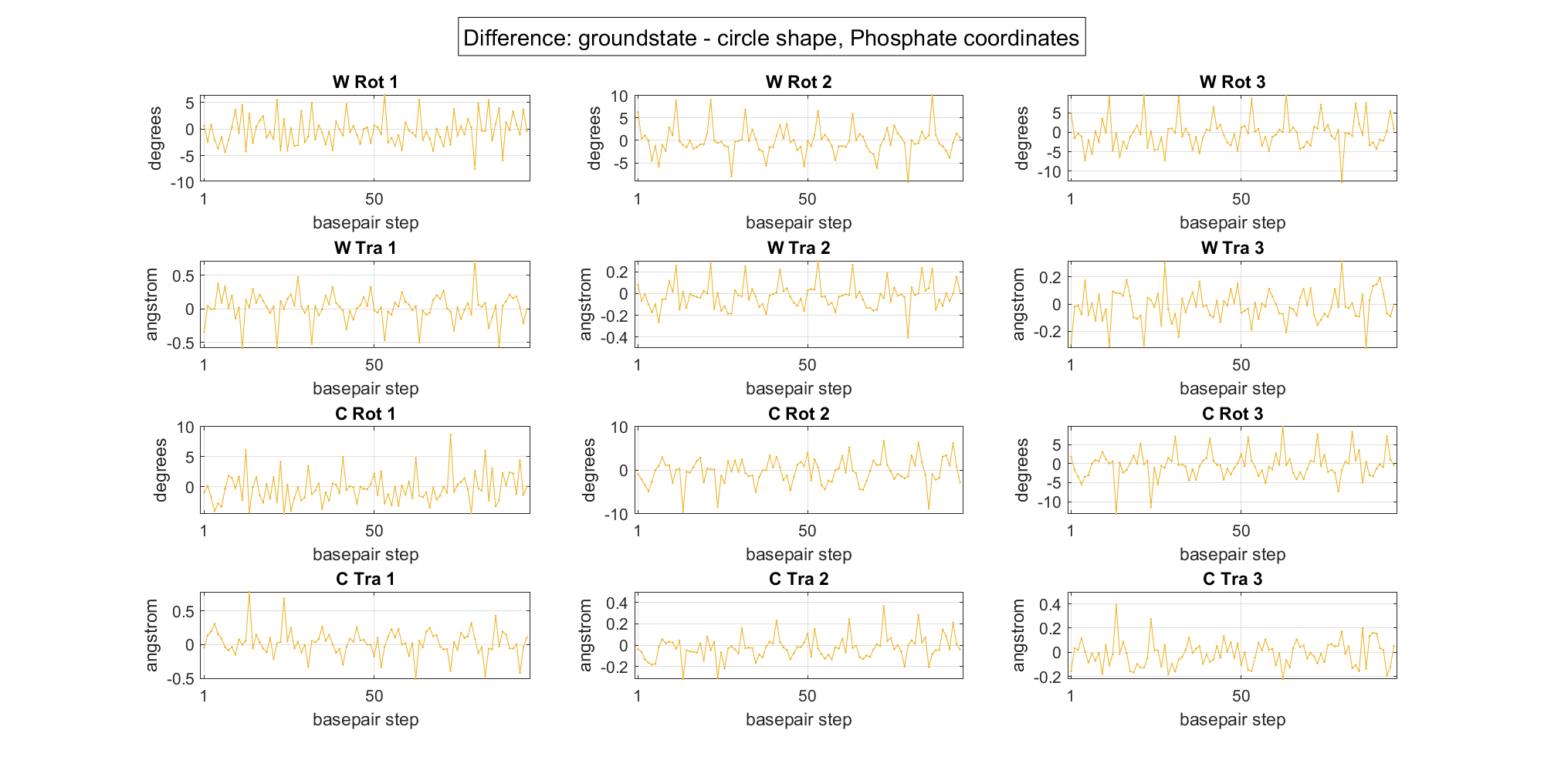

Solution for initial guess A:

Link Energy Smallest Eigenvalue
Initial guess A 9 2848 -
Solution A 9 79 -1.33e-5





MATLAB figures and saved variables:
Widom_3Dsol1_PCcgDNA+min.fig

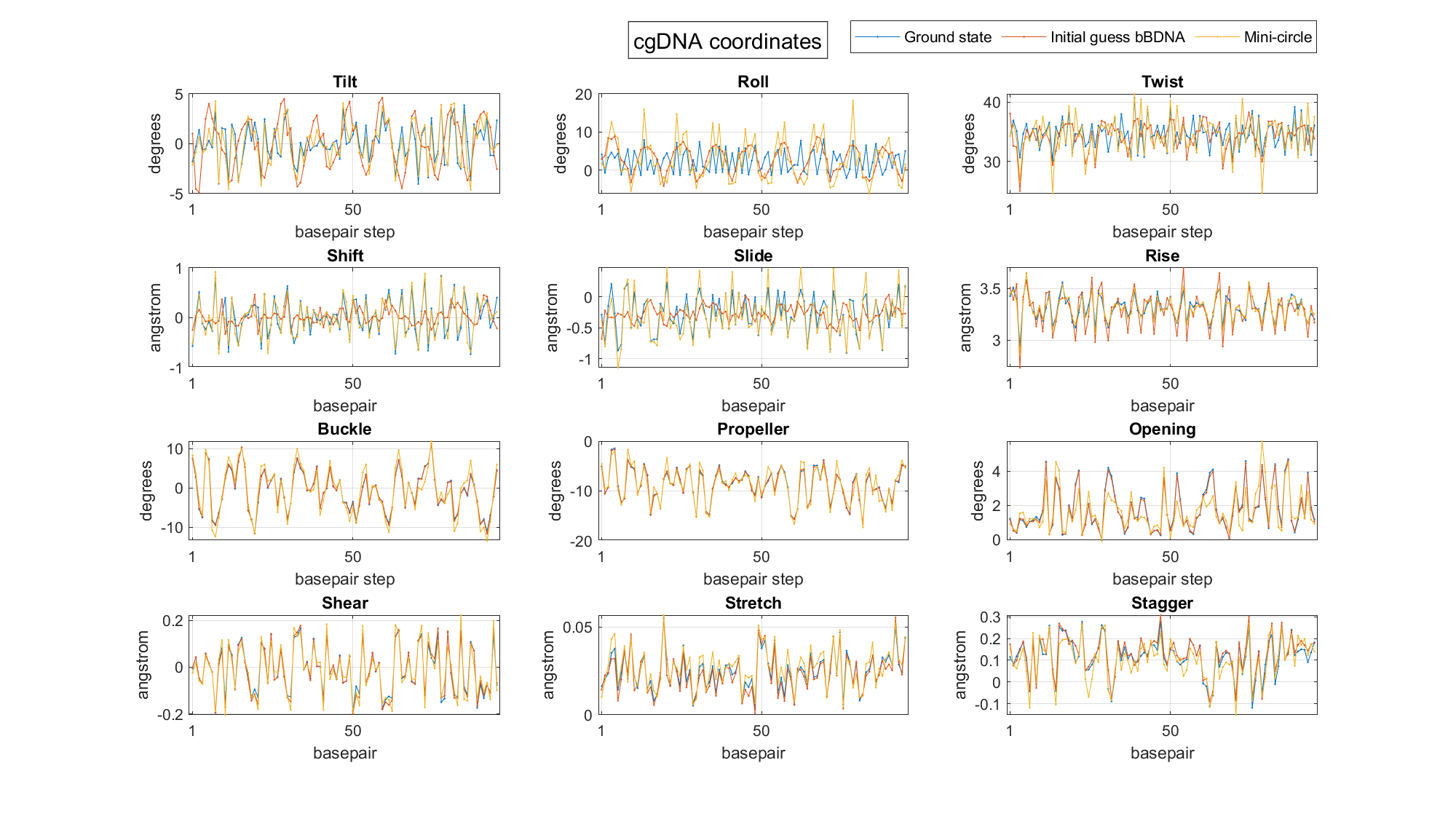

Widom_2Dsol1_PCcgDNA+min_cgDNA-coord.fig

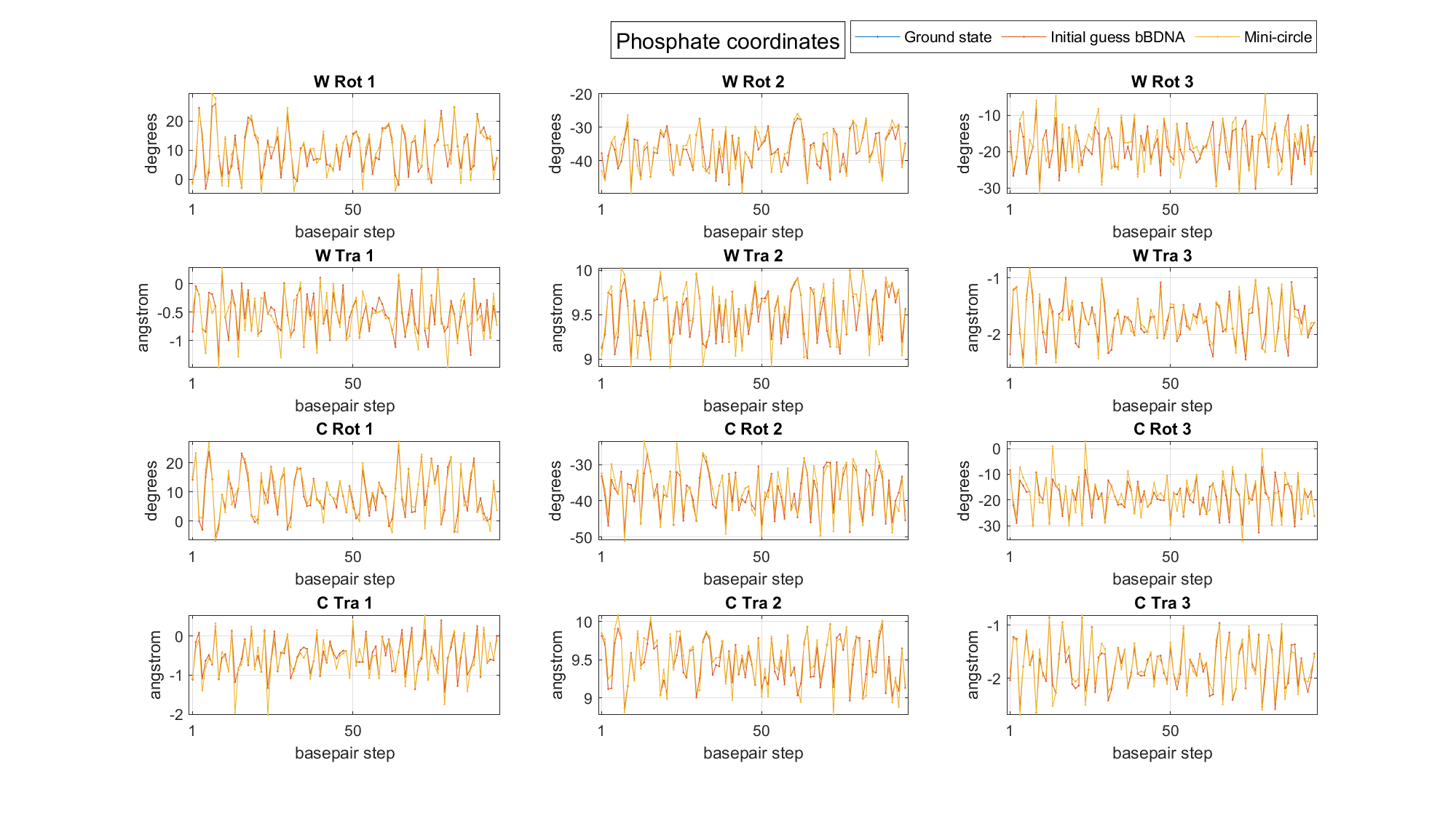

Widom_2Dsol1_PCcgDNA+min_Pho-coord.fig
Widom_sol1_PCcgDNA+min.mat

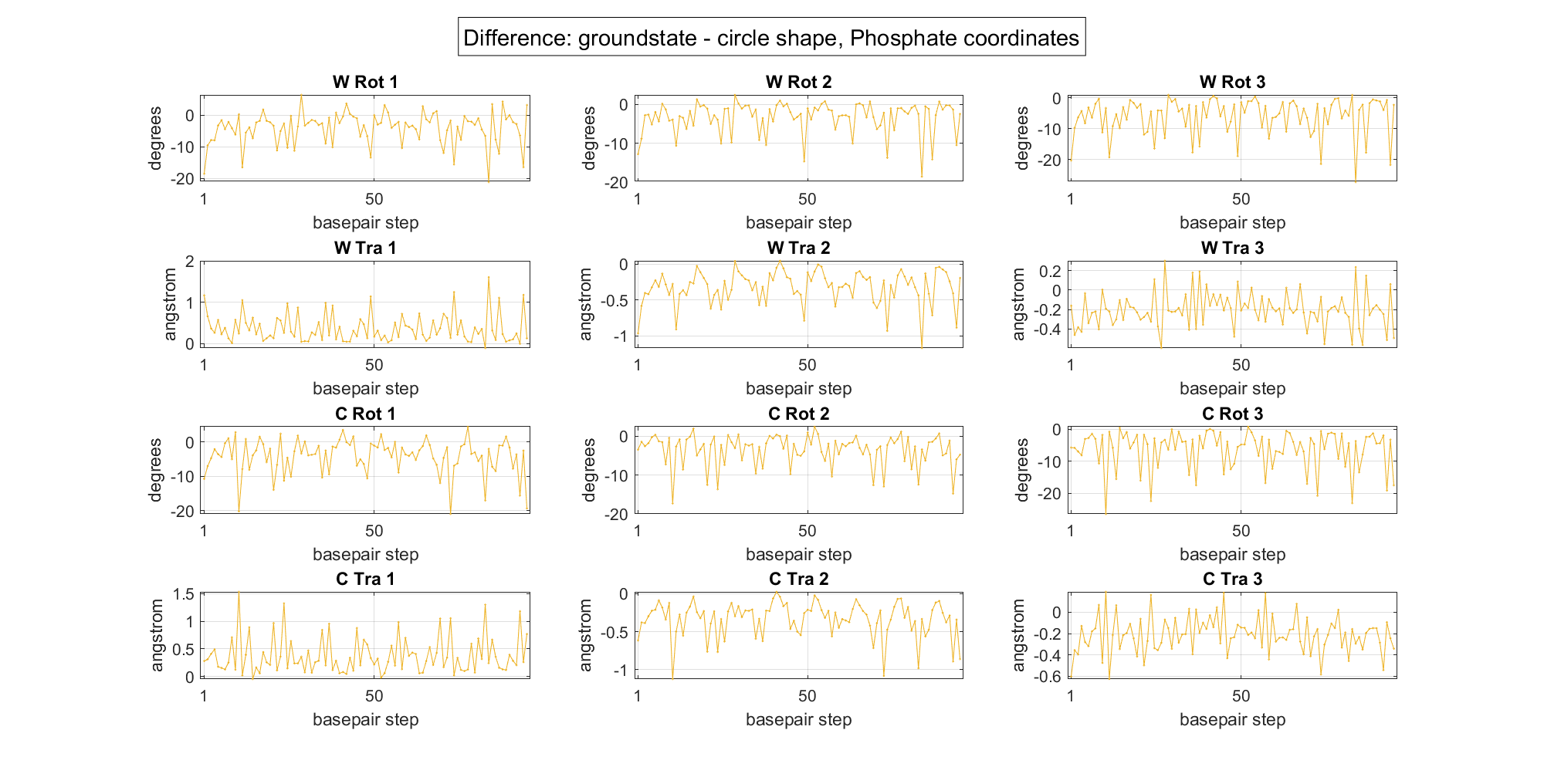

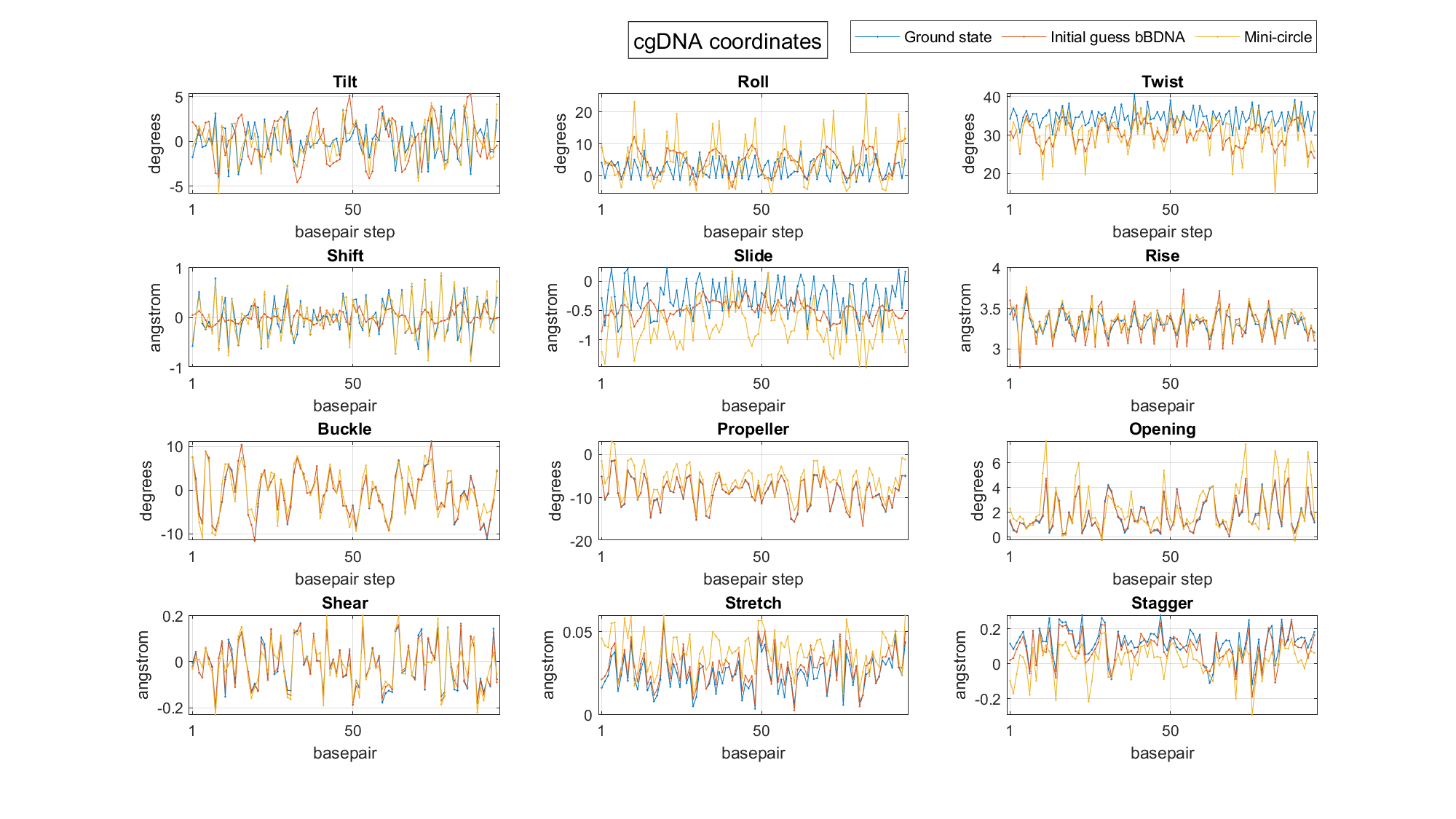

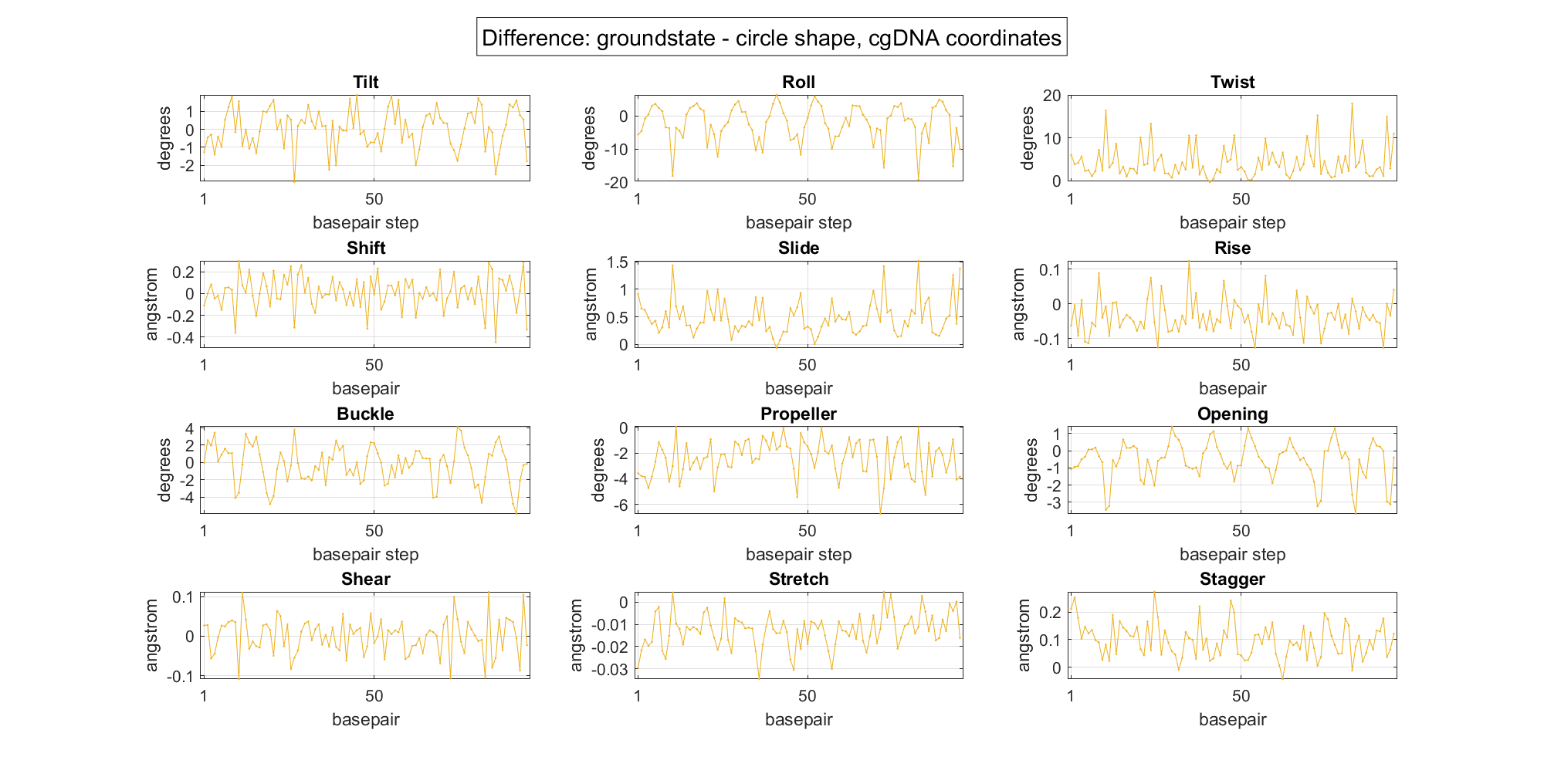

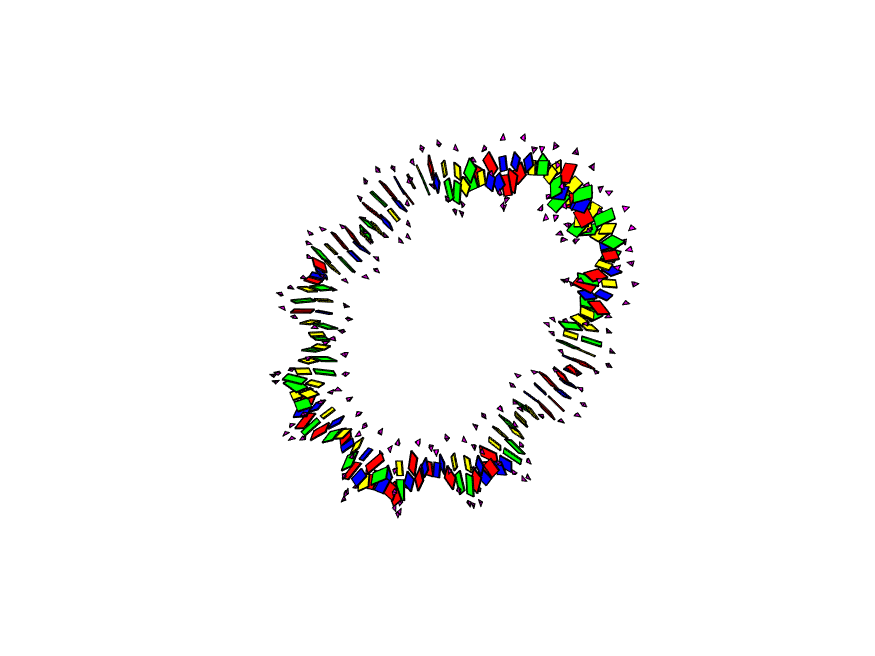

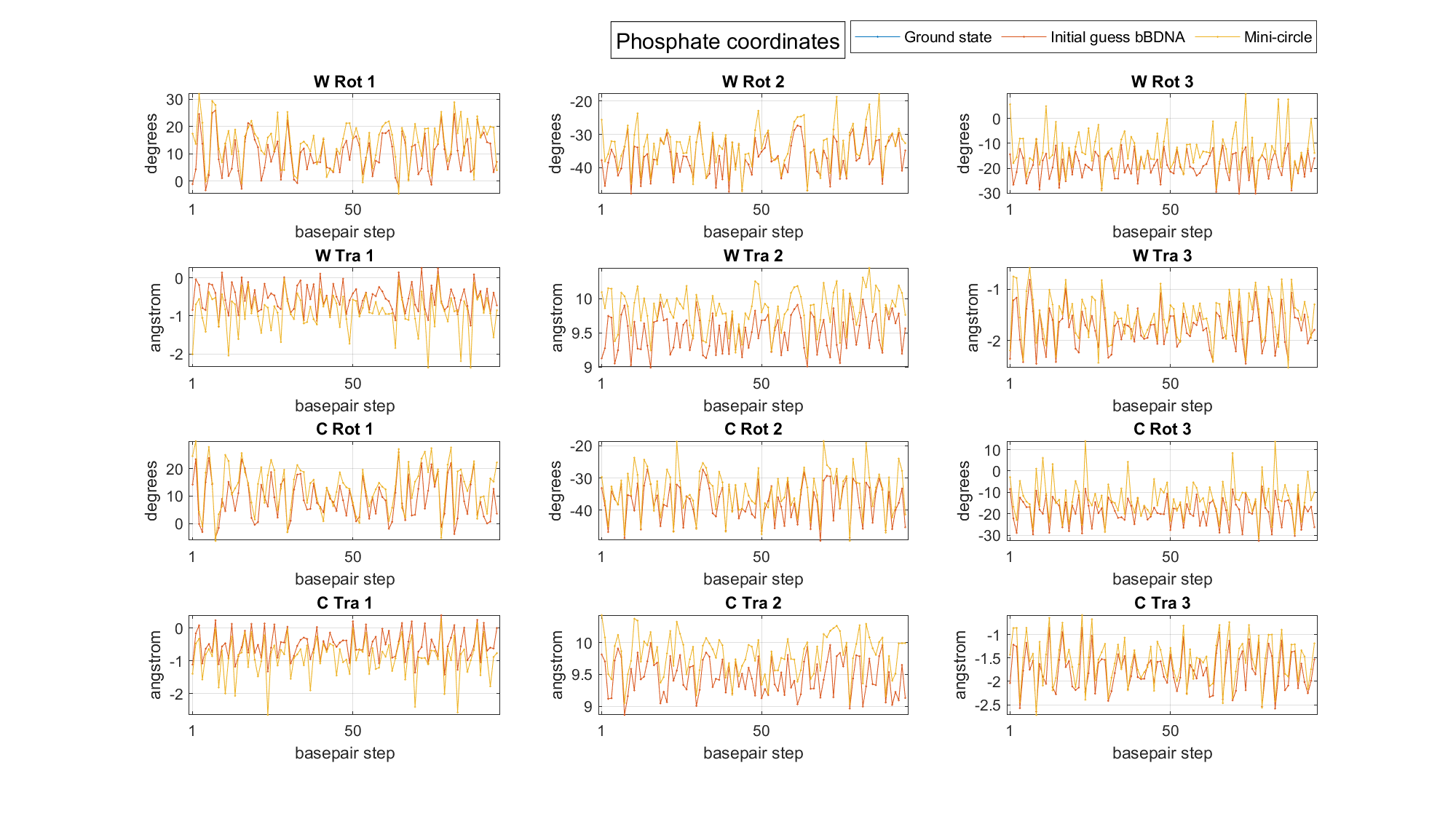

Solution for initial guess B:

Link Energy Smallest Eigenvalue
Initial guess B 8 4335 -
Solution B 8 279 -7.13e-4





MATLAB figures and saved variables:
Widom_3Dsol2_PCcgDNA+min.fig
Widom_2Dsol2_PCcgDNA+min_cgDNA-coord.fig
Widom_2Dsol2_PCcgDNA+min_Pho-coord.fig
Widom_sol2_PCcgDNA+min.mat

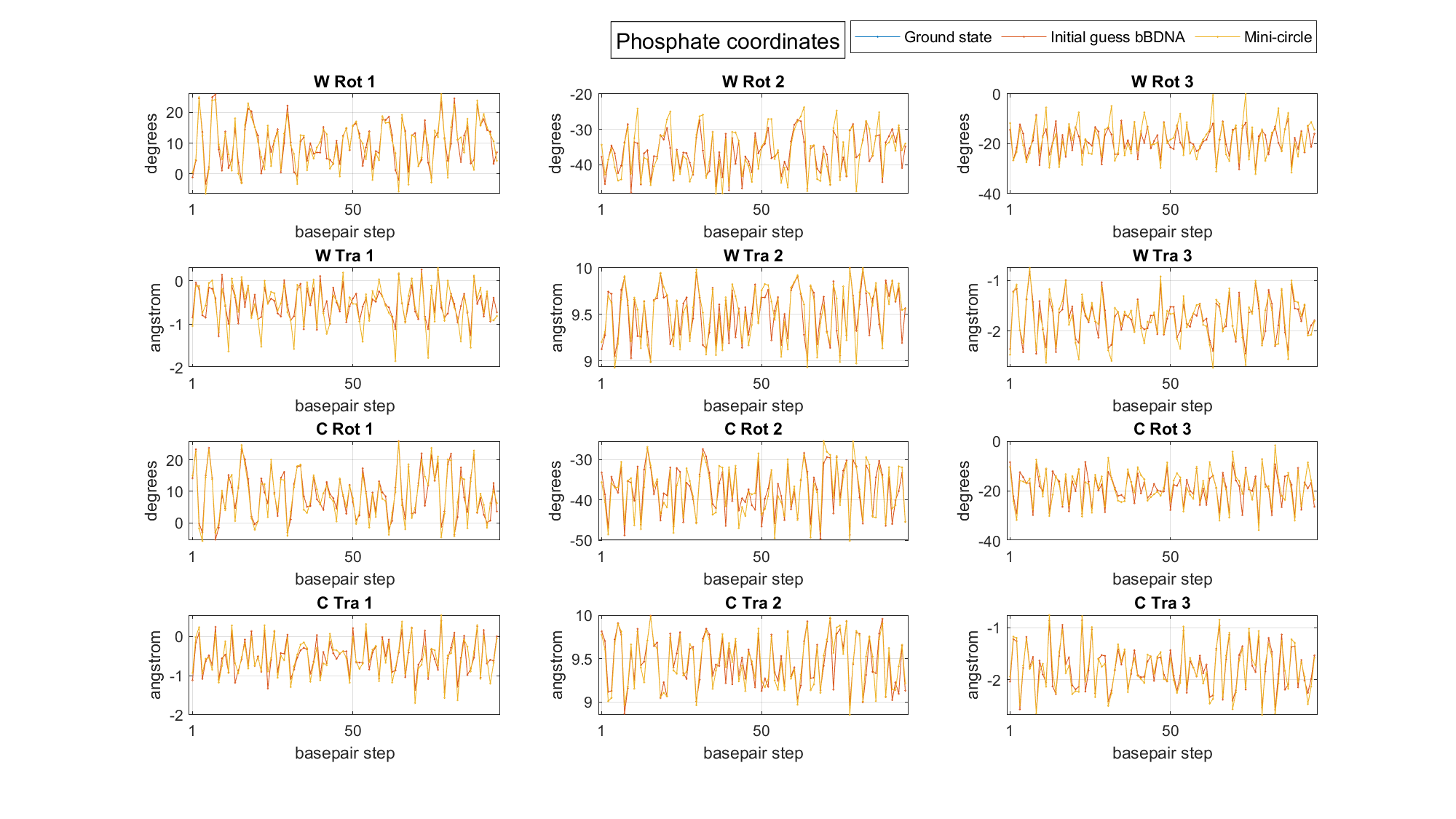

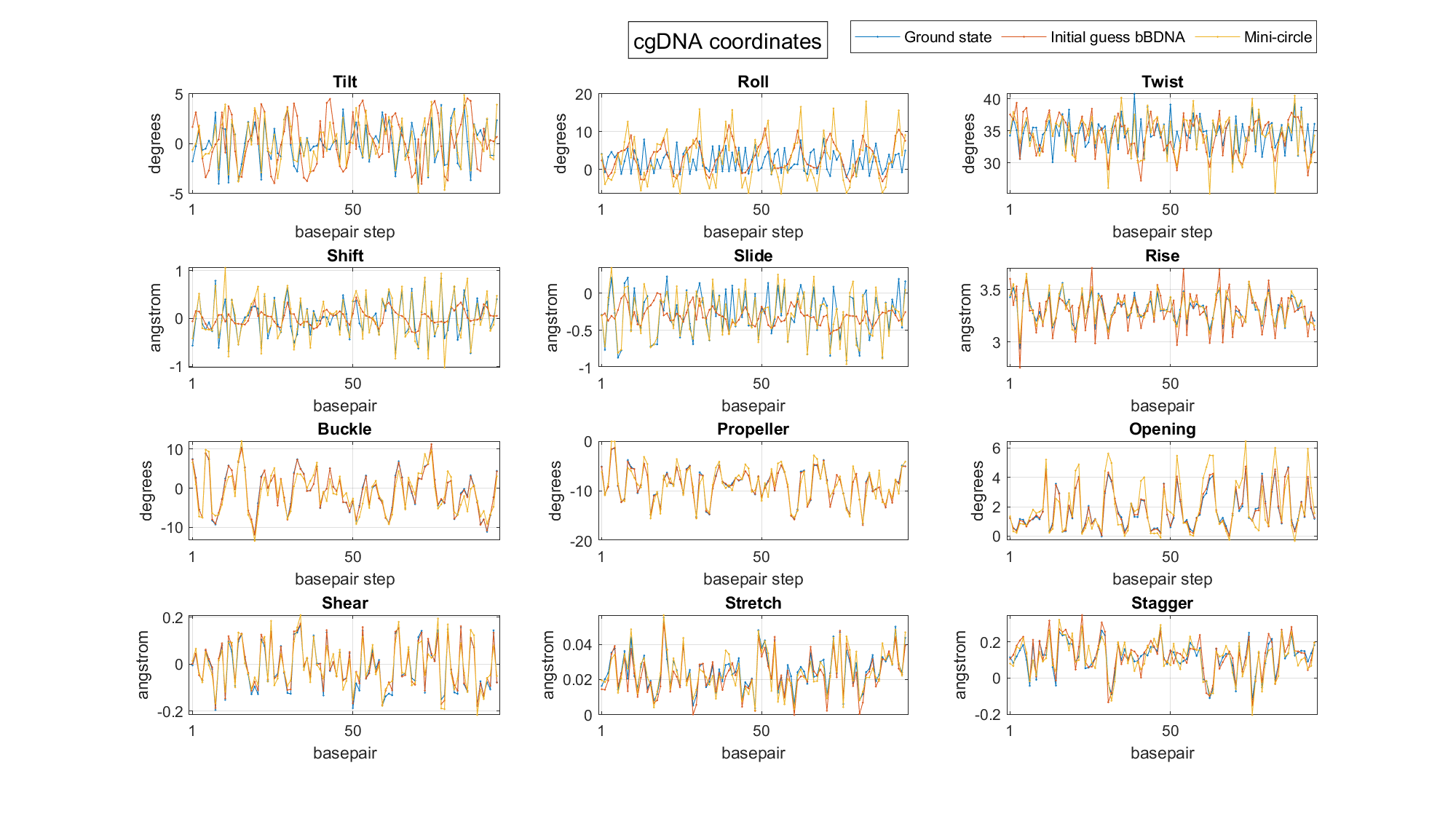

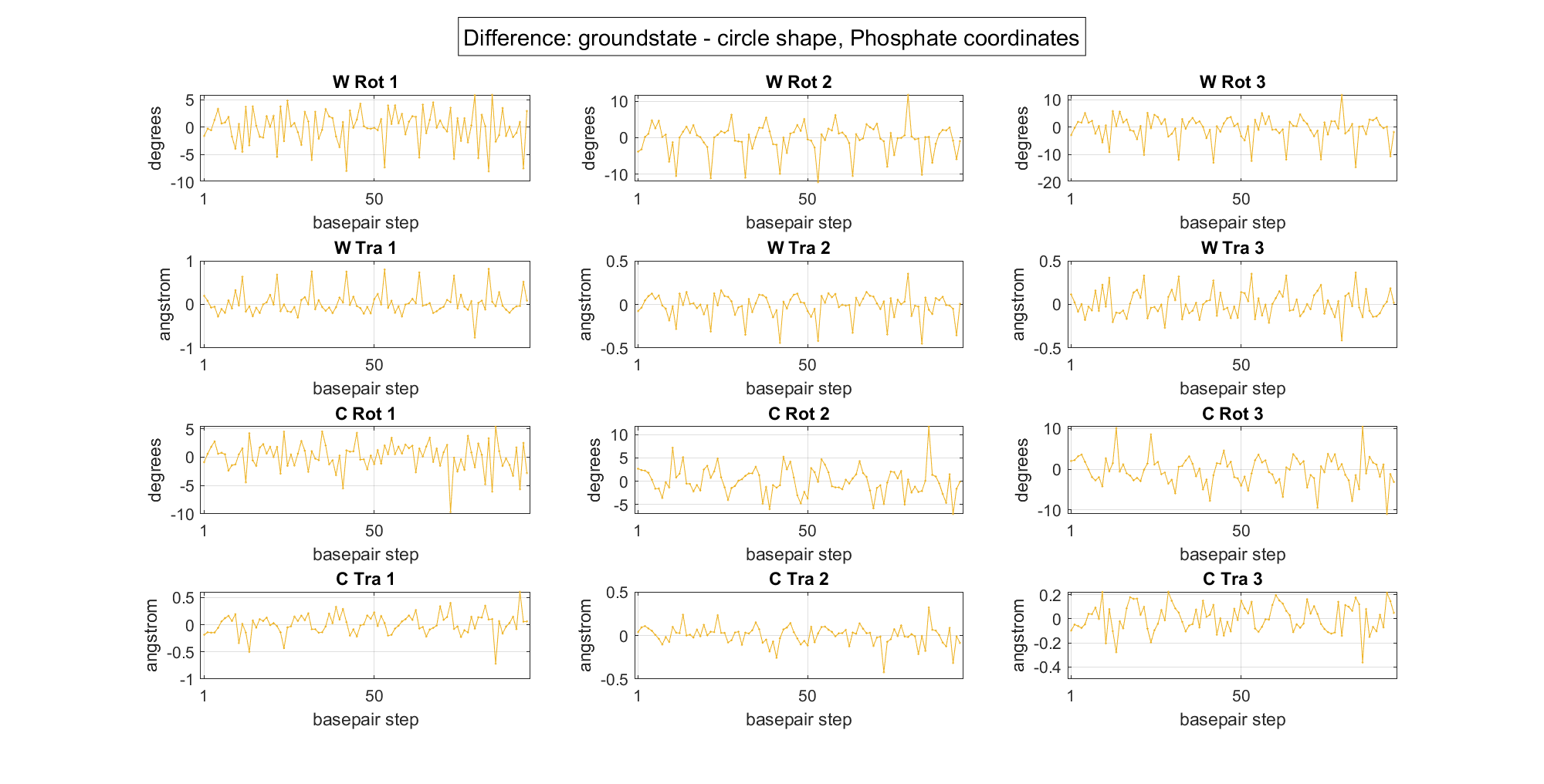

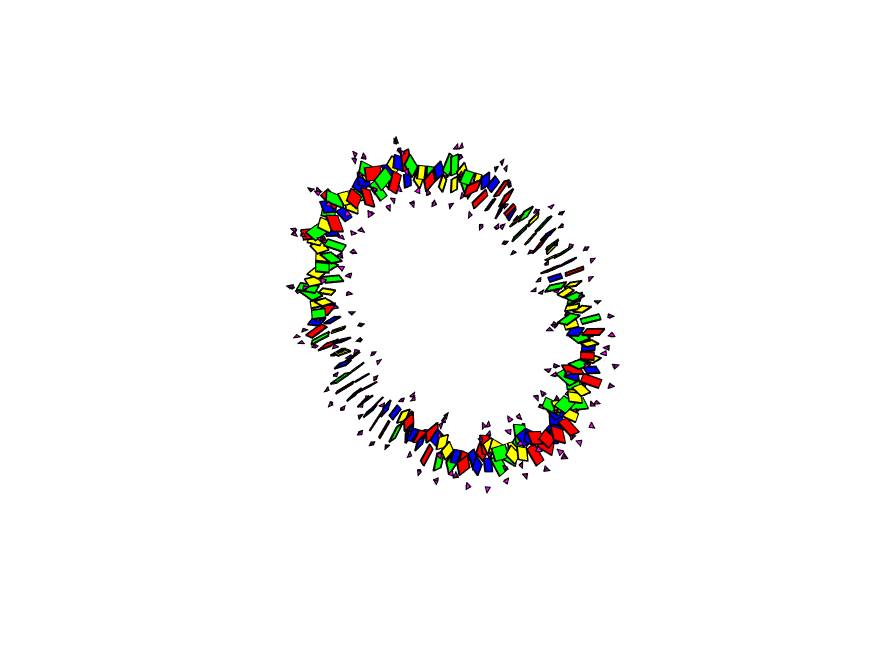

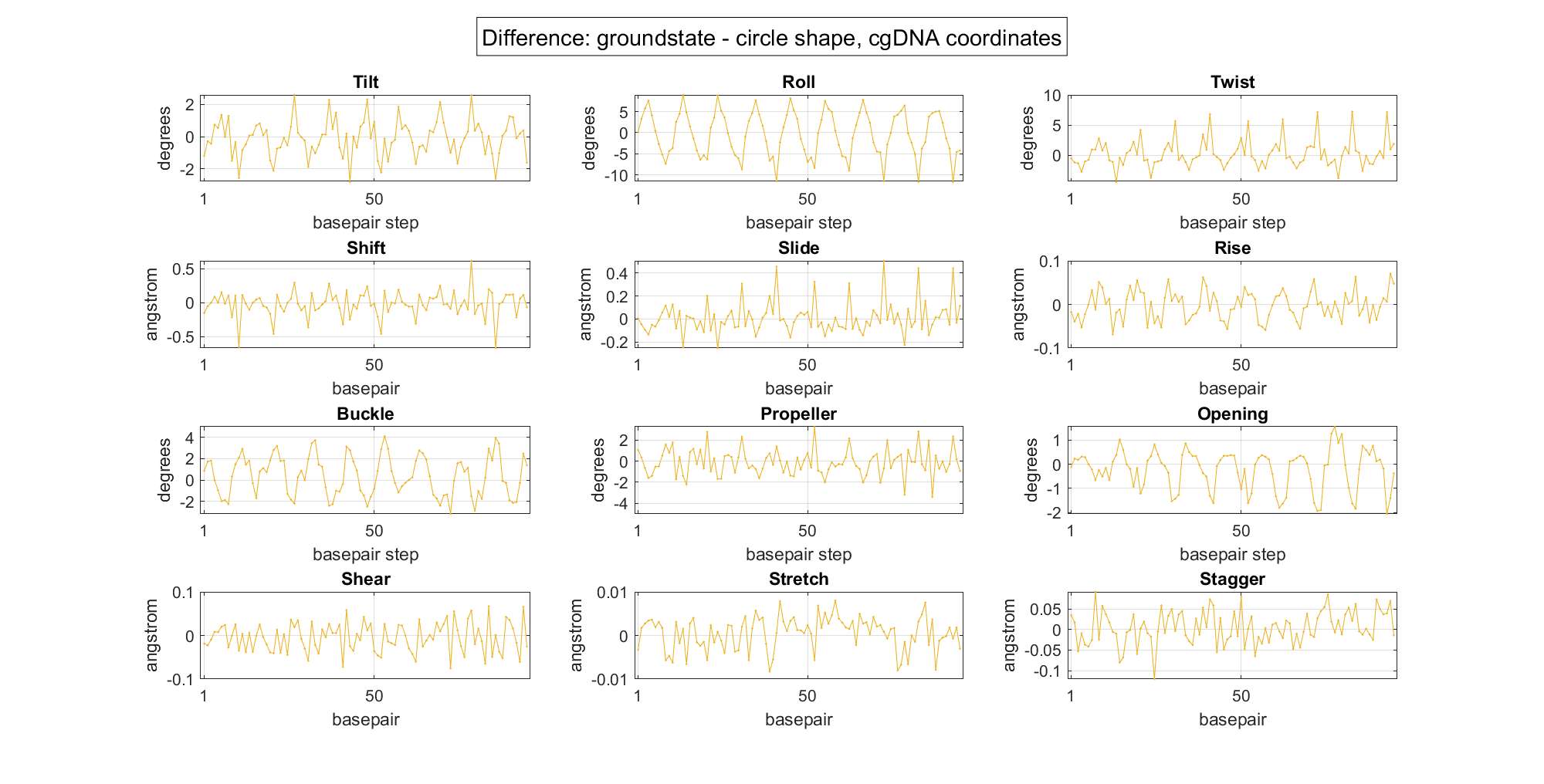

Solution for initial guess C:

Link Energy Smallest Eigenvalue
Initial guess C 9 2942 -
Solution C 9 97 2.15e-5





MATLAB figures and saved variables:
Widom_3Dsol3_PCcgDNA+min.fig
Widom_2Dsol3_PCcgDNA+min_cgDNA-coord.fig
Widom_2Dsol3_PCcgDNA+min_Pho-coord.fig
Widom_sol3_PCcgDNA+min.mat

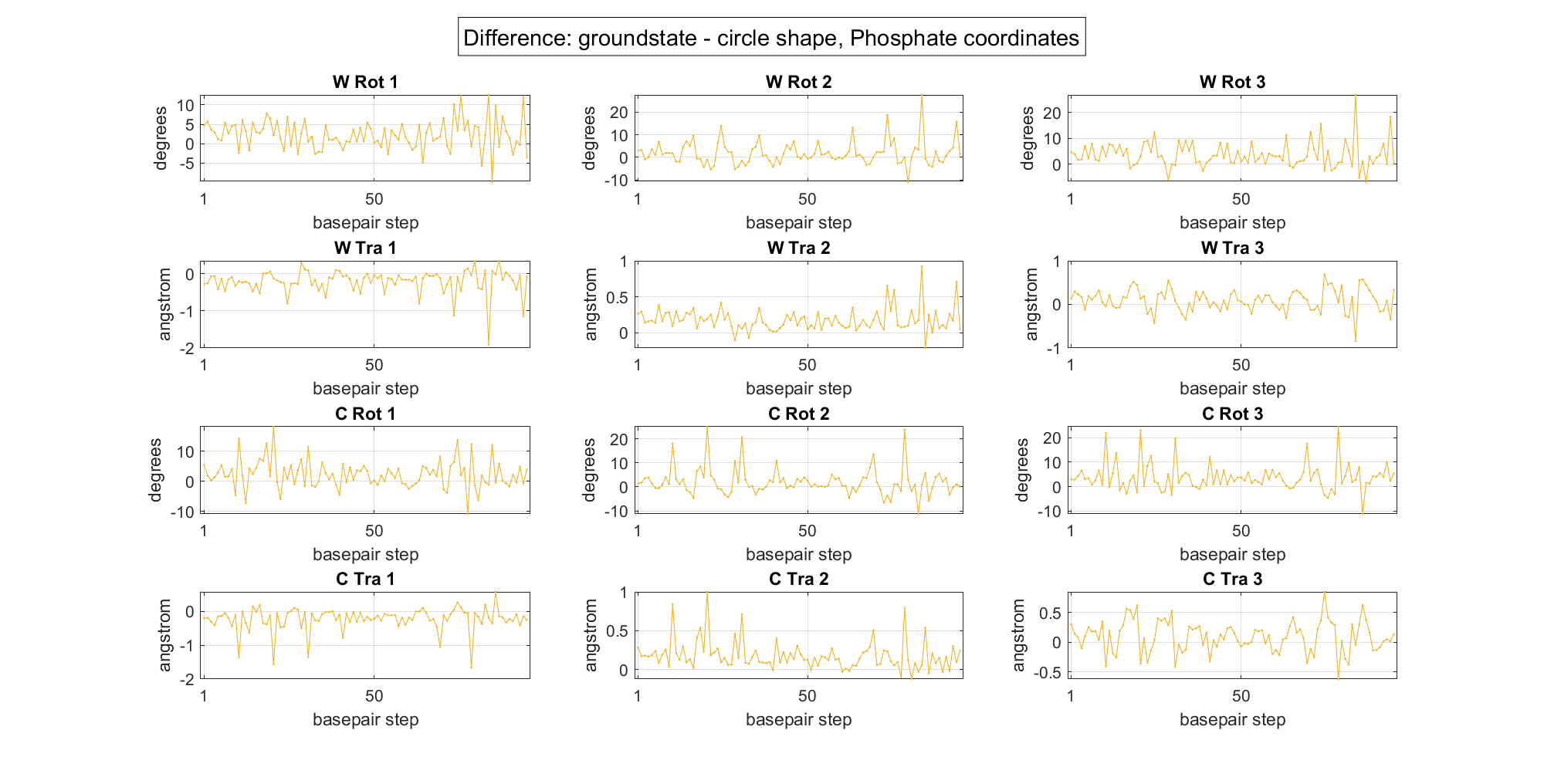

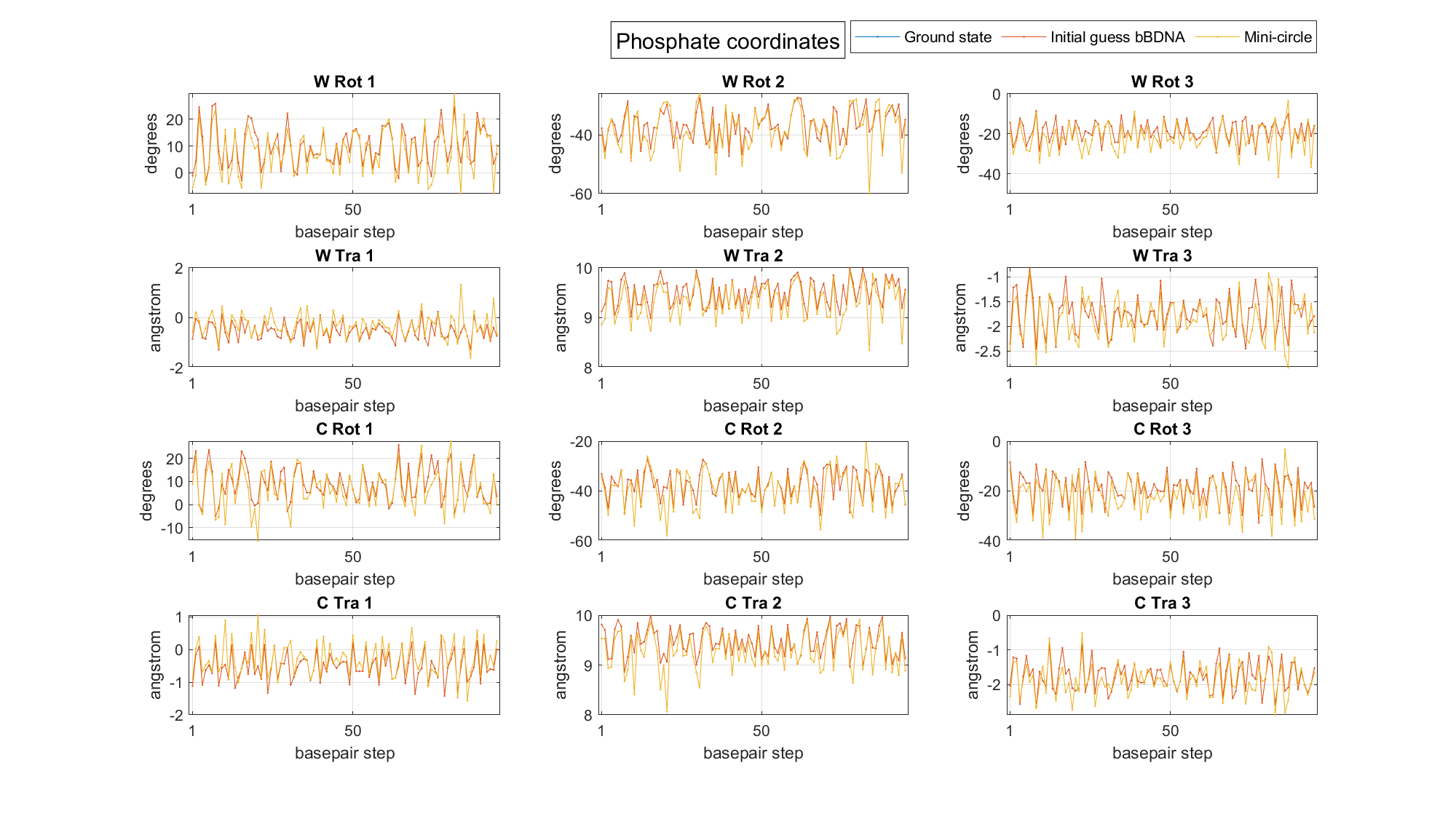

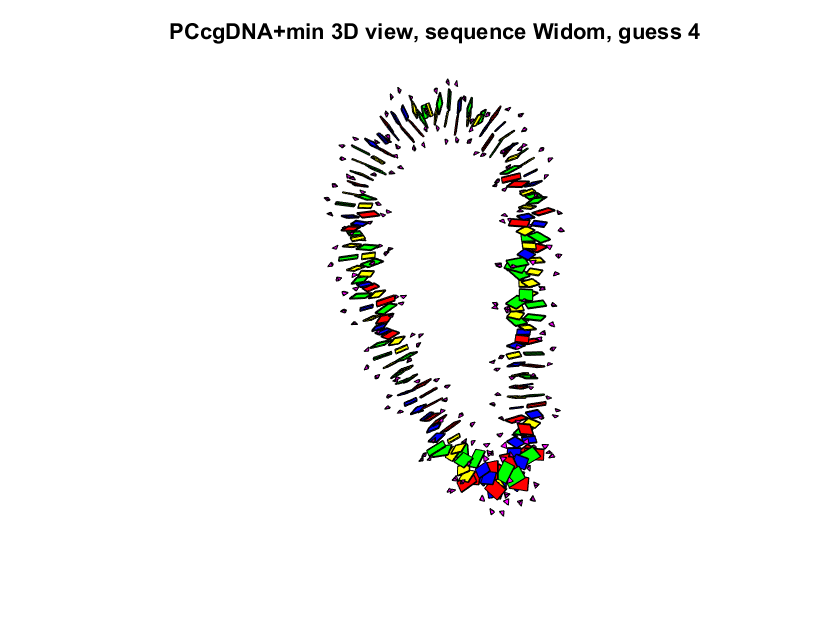

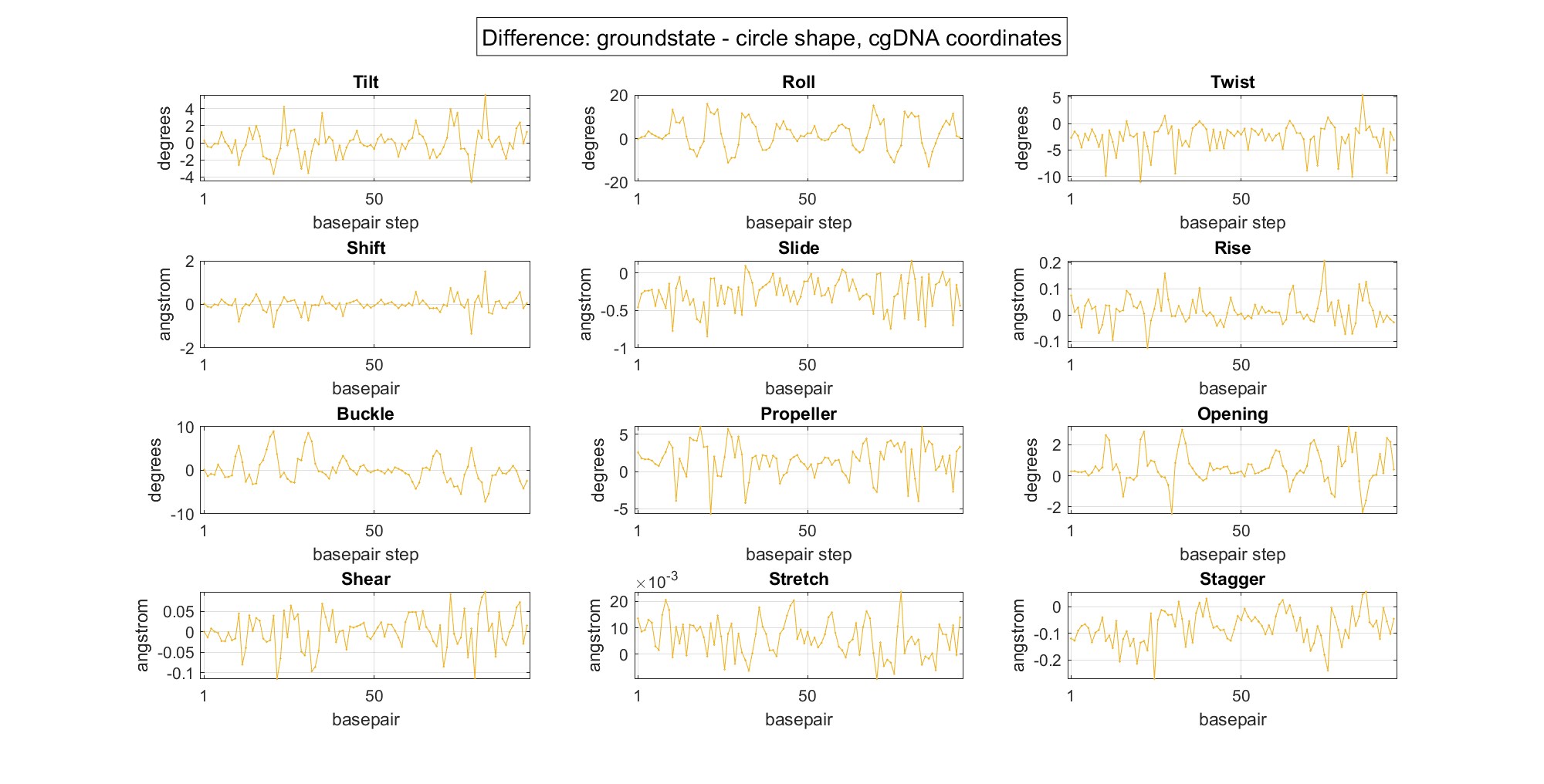

Solution for initial guess D:

Link Energy Smallest Eigenvalue
Initial guess D 8 4284 -
Solution D 10 222 1.28e-4





MATLAB figures and saved variables:
Widom_3Dsol4_PCcgDNA+min.fig

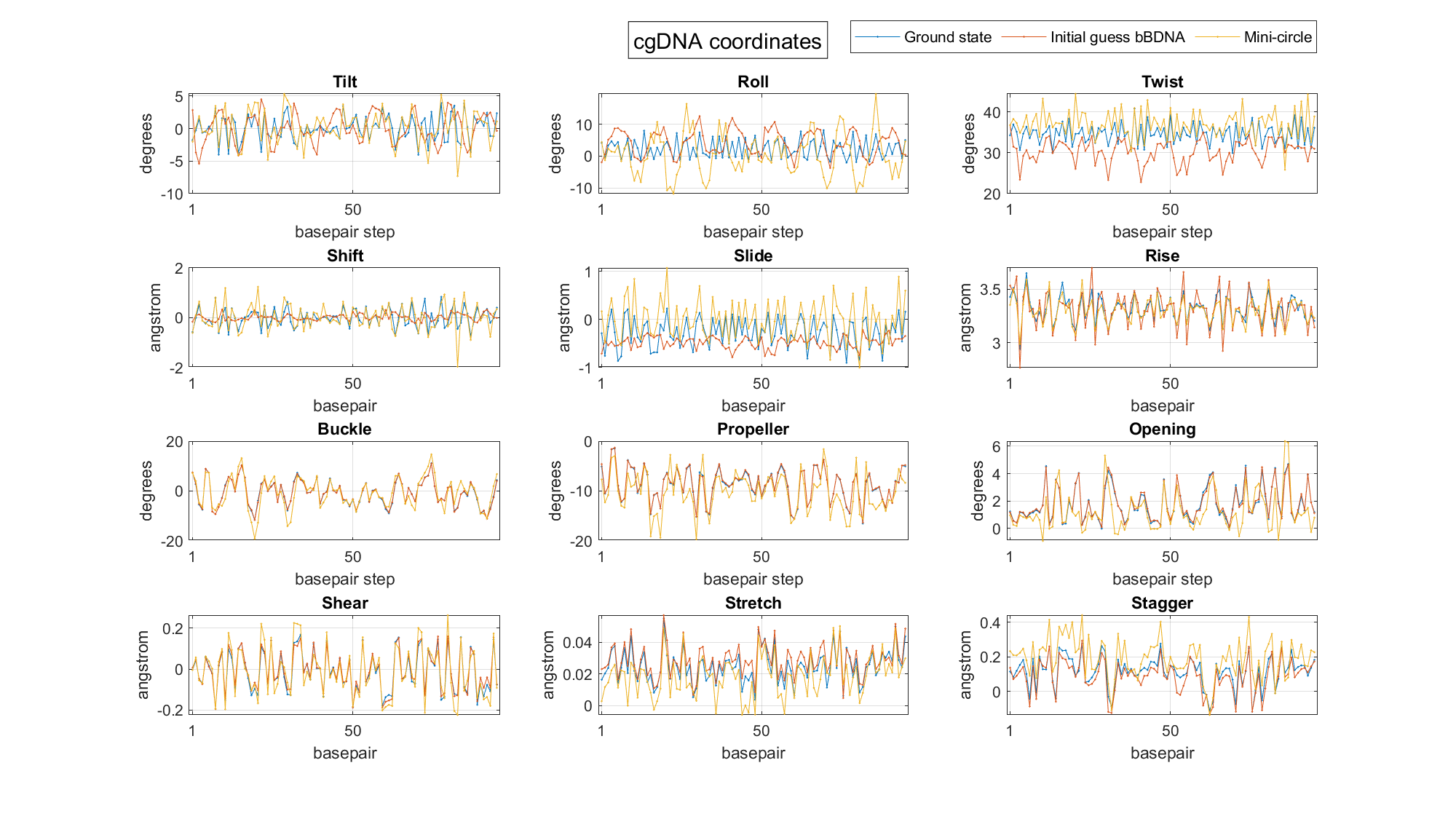

Widom_2Dsol4_PCcgDNA+min_cgDNA-coord.fig
Widom_2Dsol4_PCcgDNA+min_Pho-coord.fig
Widom_sol4_PCcgDNA+min.mat
