NCC cgDNAmin: Kahn & Crothers sequence

Non-continuous closure cgDNAmin results for the 4 initial guesses highlighted in the following bifurcation diagram:

From the results we observe that solutions for guesses A and D show the same configuration and solutions given by guesses B and C are the same.

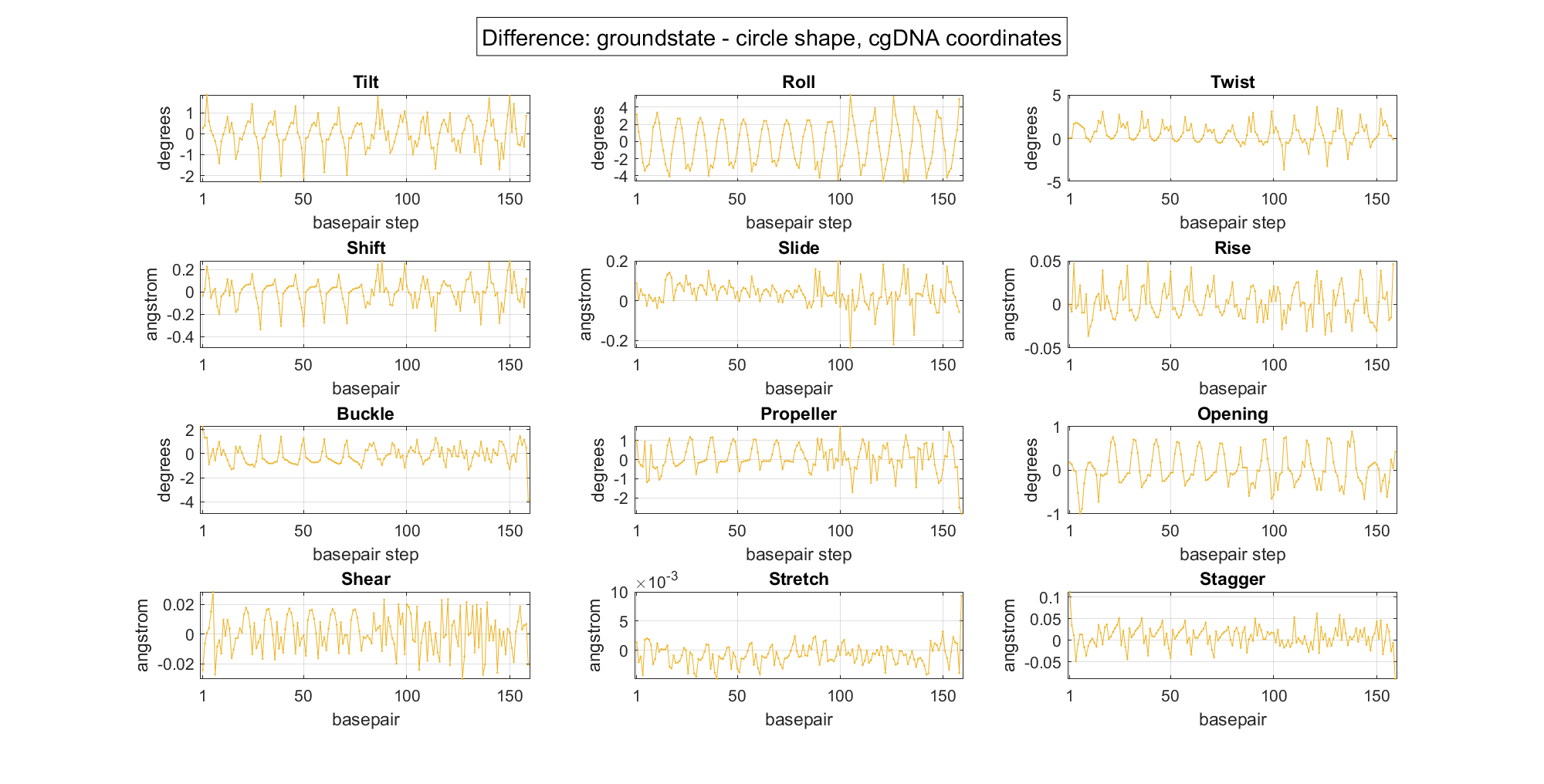

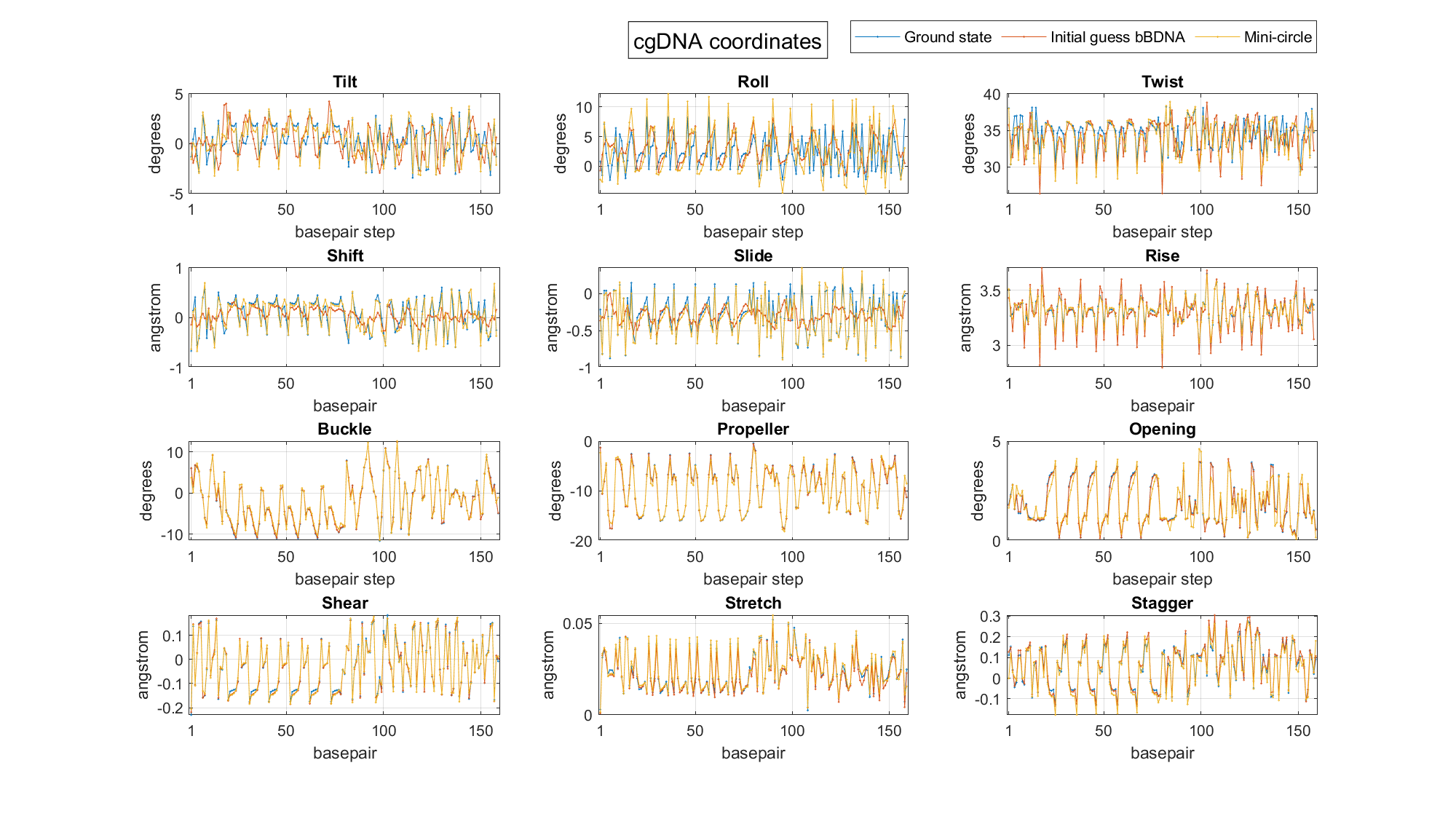

Solution for initial guess A:

Link Energy Smallest Eigenvalue
Initial guess A 15 418 -
Solution A 15 35 1.36e-6



MATLAB figures saved variables:
Kahn-Crothers_3Dsol1_NCCcgDNAmin.fig
Kahn-Crothers_2Dsol1_NCCcgDNAmin.fig
Kahn-Crothers_sol1_NCCcgDNAmin.mat

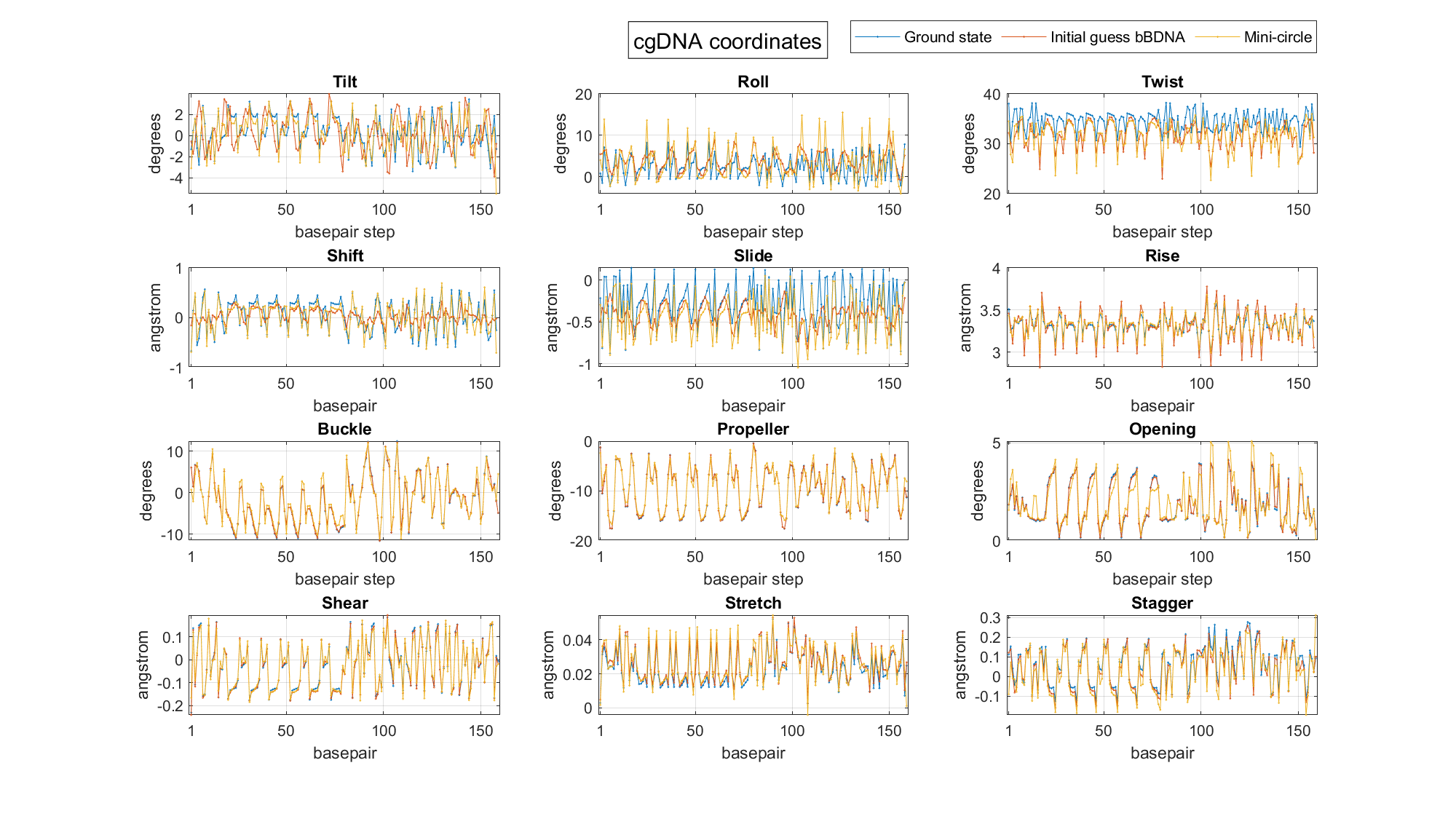

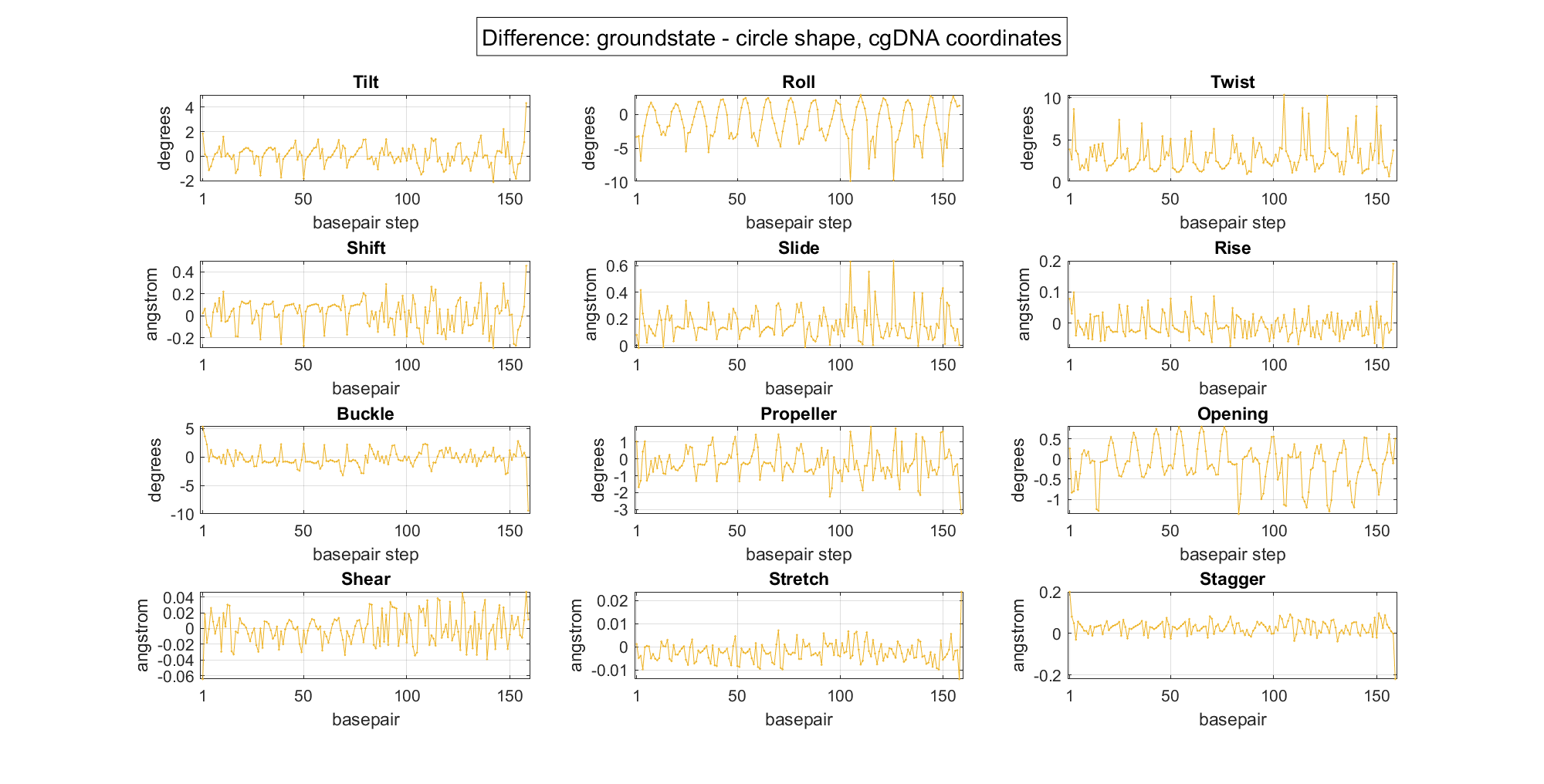

Solution for initial guess B:

Link Energy Smallest Eigenvalue
Initial guess B 14 482 -
Solution B 14 84 2.42e-6



MATLAB figures and saved variables:
Kahn-Crothers_3Dsol2_NCCcgDNAmin.fig
Kahn-Crothers_2Dsol2_NCCcgDNAmin.fig
Kahn-Crothers_sol2_NCCcgDNAmin.mat

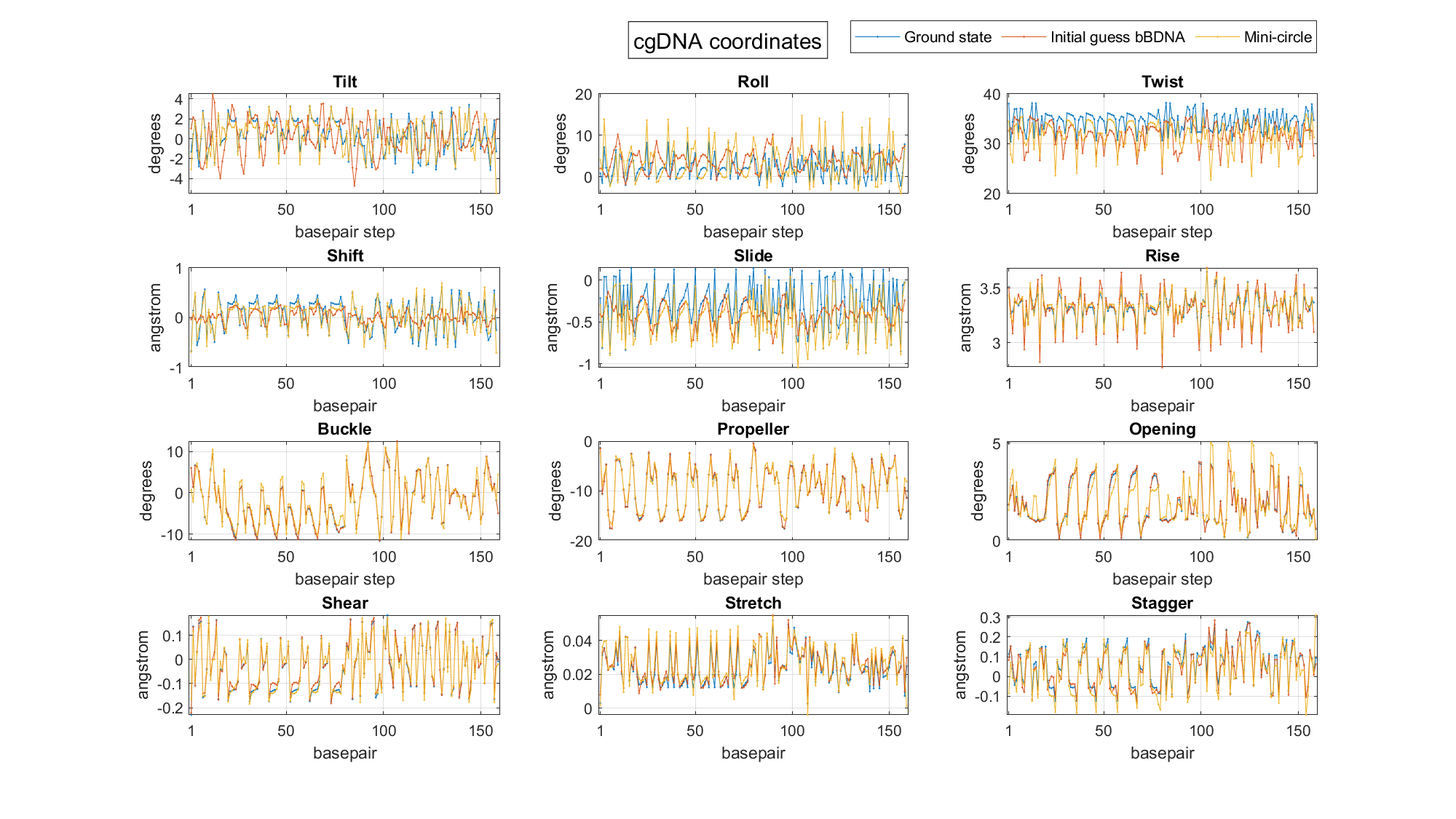

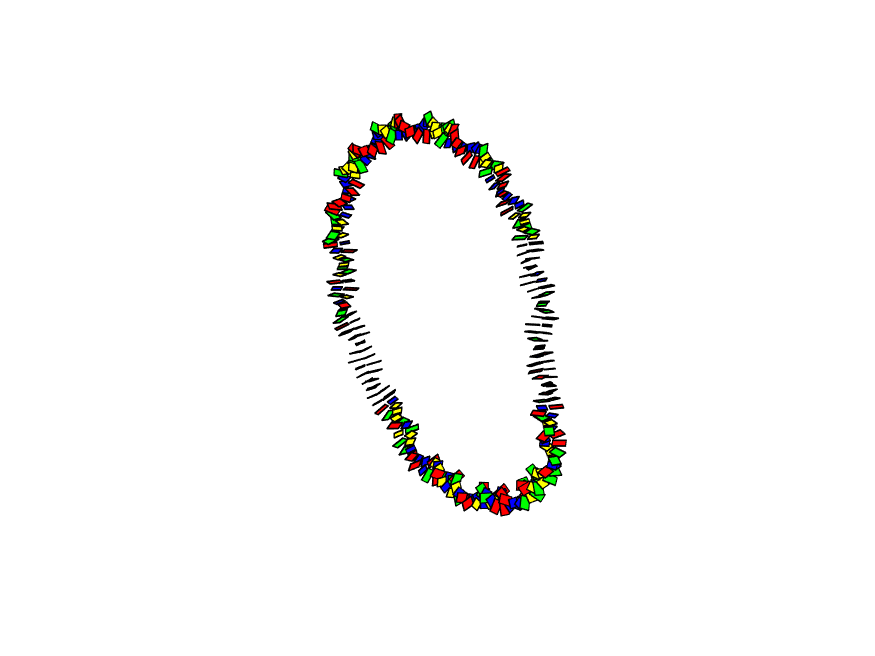

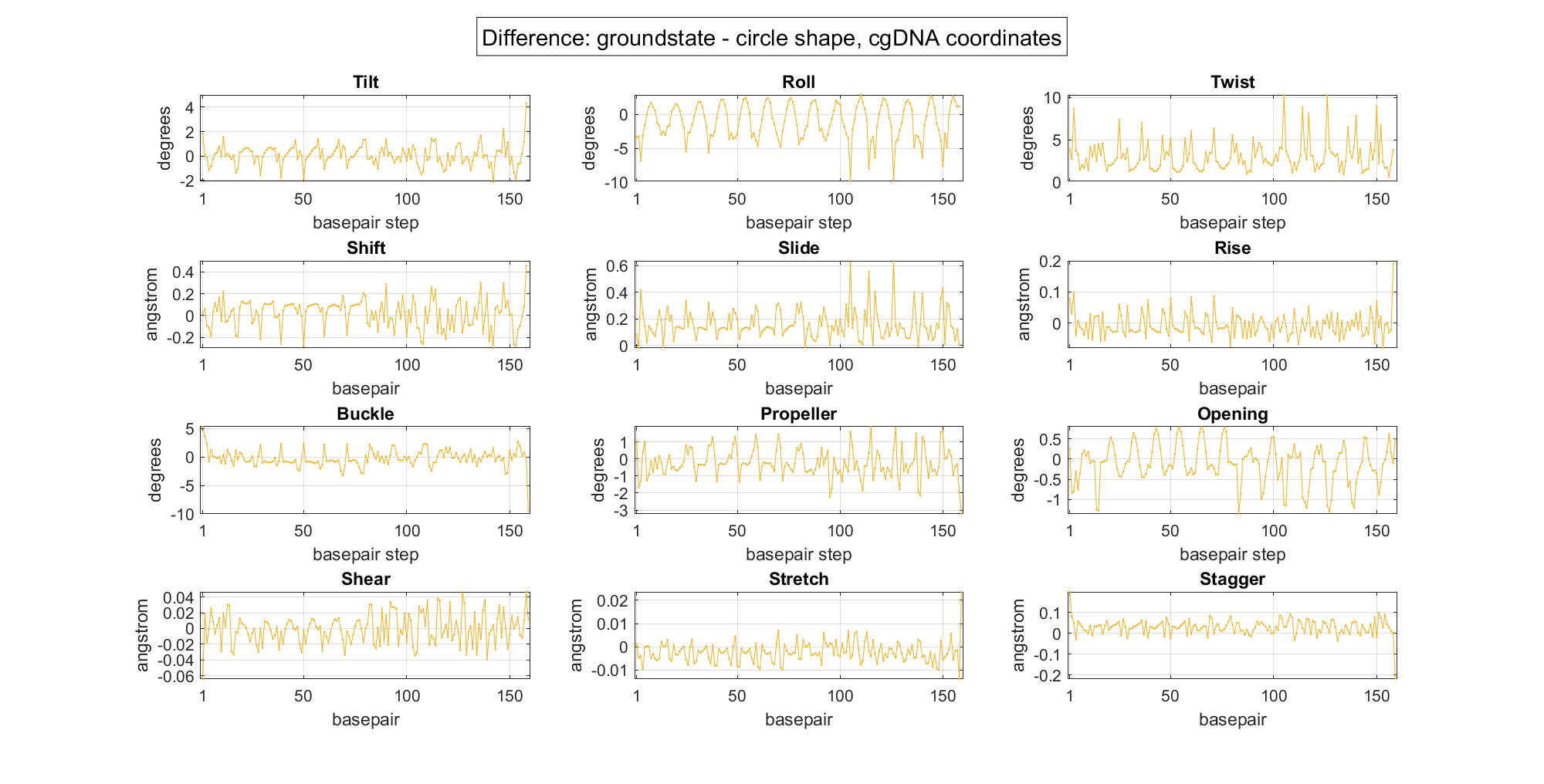

Solution for initial guess C:

Link Energy Smallest Eigenvalue
Initial guess C 14 481 -
Solution C 14 84 2.41e-6



MATLAB figures and saved variables:
Kahn-Crothers_3Dsol4_NCCcgDNAmin.fig
Kahn-Crothers_2Dsol4_NCCcgDNAmin.fig
Kahn-Crothers_sol4_NCCcgDNAmin.mat

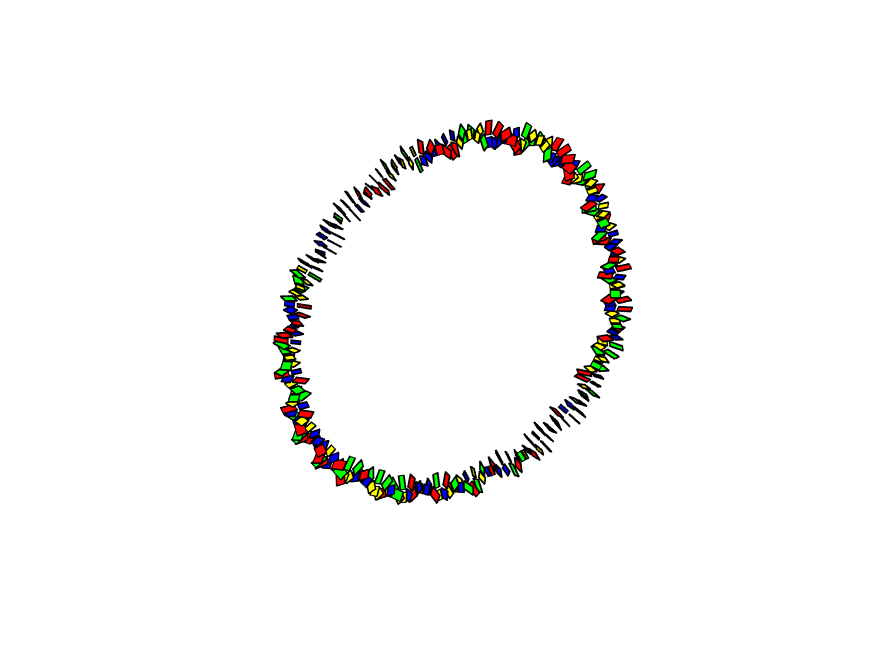

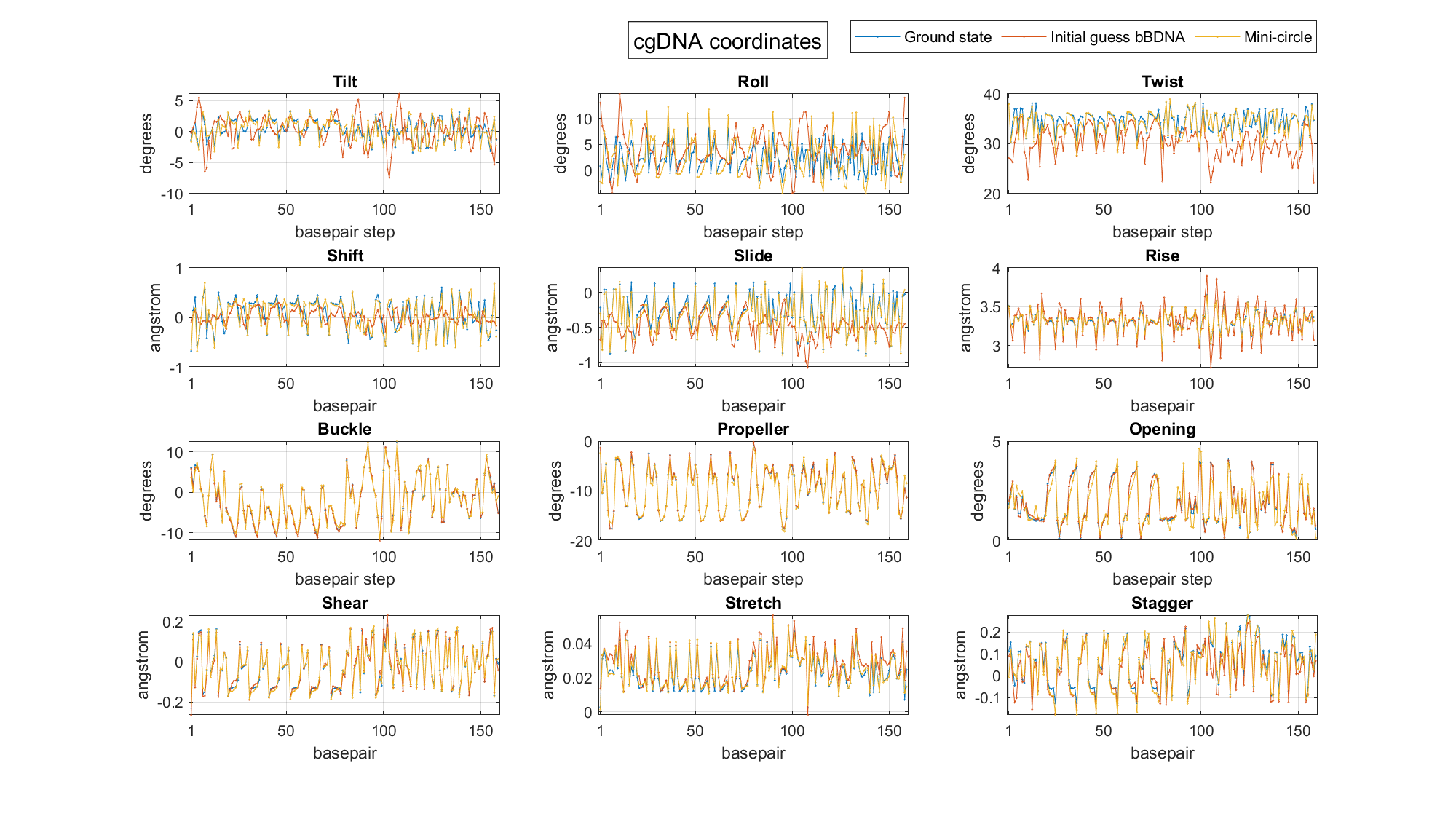

Solution for initial guess D:

Link Energy Smallest Eigenvalue
Initial guess D 15 699 -
Solution D 15 35 1.40e-6



MATLAB figures and saved variables:
Kahn-Crothers_3Dsol10_NCCcgDNAmin.fig
Kahn-Crothers_2Dsol10_NCCcgDNAmin.fig
Kahn-Crothers_sol10_NCCcgDNAmin.mat
