NCC cgDNAmin:Poly A sequence

Non-continuous closure cgDNAmin results for the 4 initial guesses highlighted in the following bifurcation diagram:

We observe that all four solutions are different.

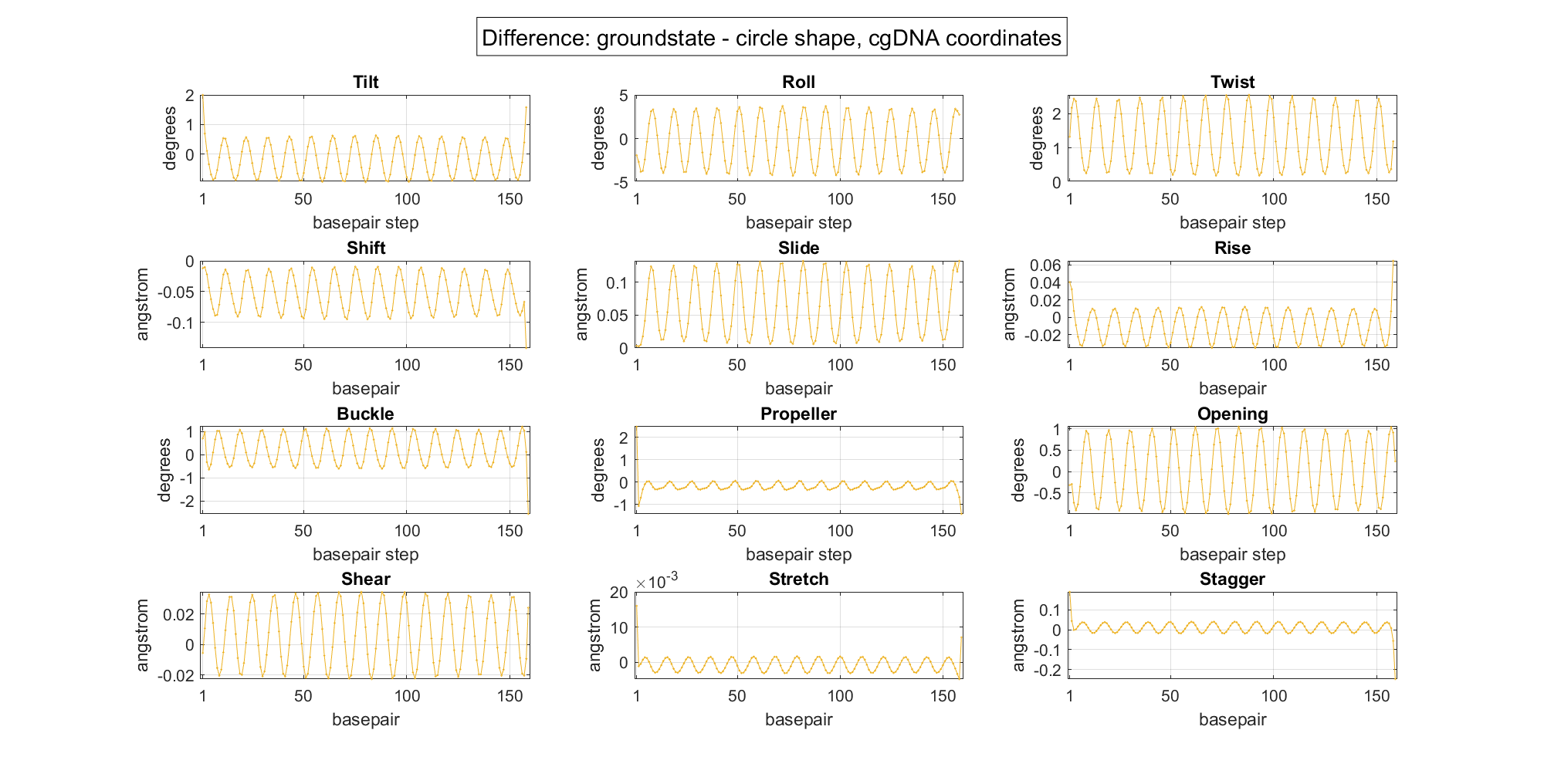

Solution for initial guess A:

Link Energy Smallest Eigenvalue
Initial guess A 15 132 -
Solution A 15 59 4.44e-7



MATLAB figures and saved variables:

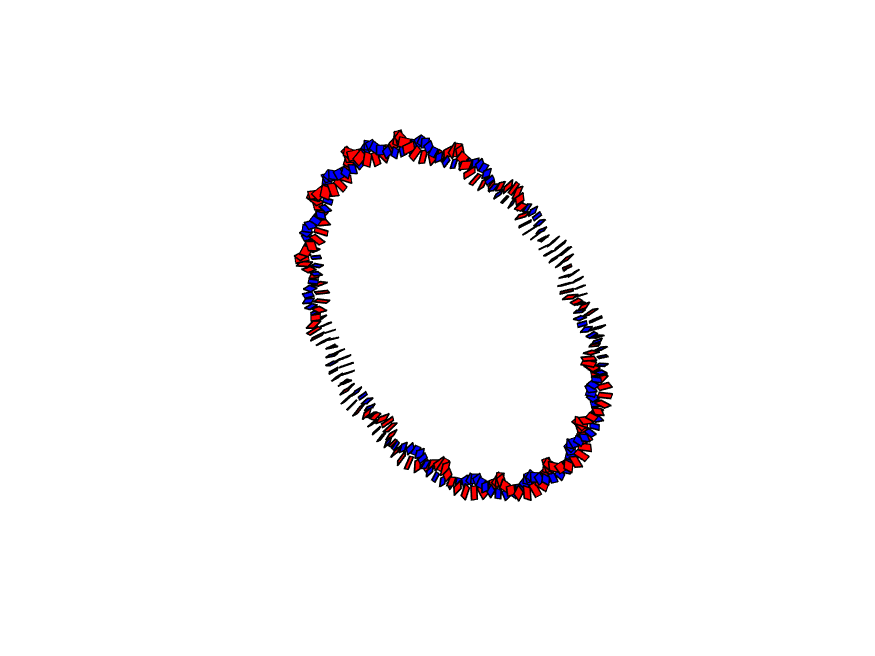

PolyA_3Dsol1_NCCcgDNAmin.fig
PolyA_2Dsol1_NCCcgDNAmin.fig
PolyA_sol1_NCCcgDNAmin.mat

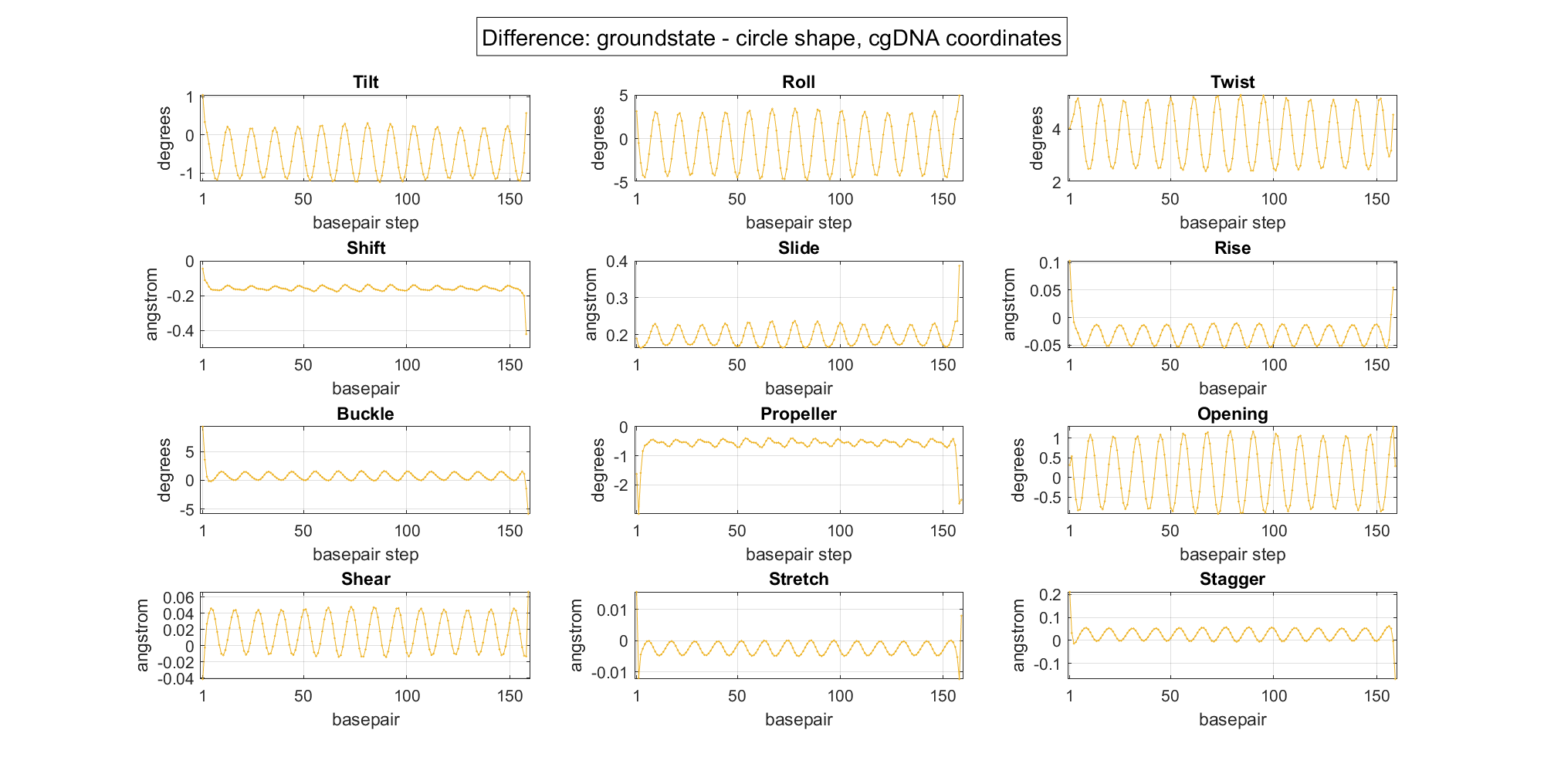

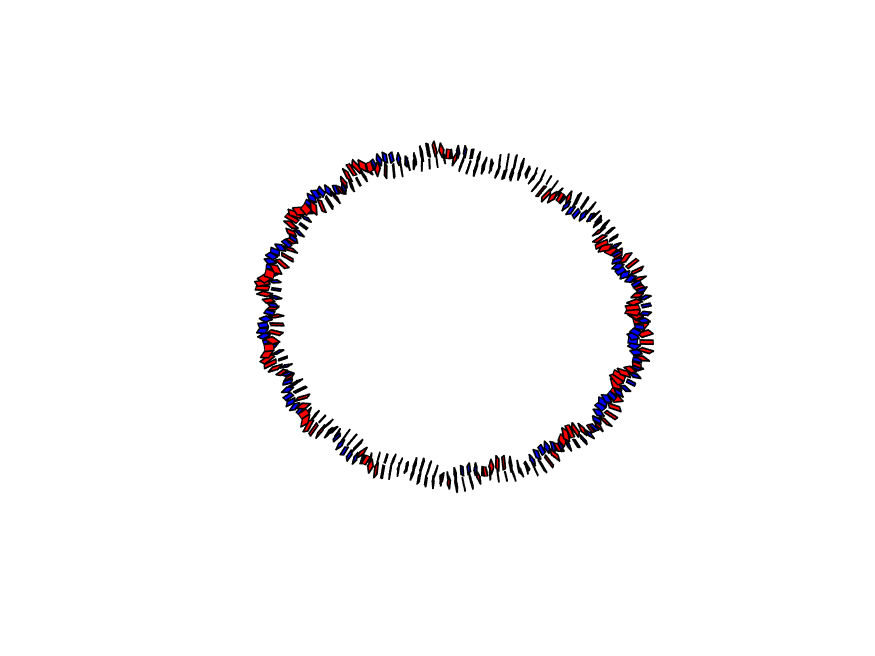

Solution for initial guess B:

Link Energy Smallest Eigenvalue
Initial guess B 14 212 -
Solution B 14 140 3.48e-7



MATLAB figures and saved variables:
PolyA_3Dsol2_NCCcgDNAmin.fig

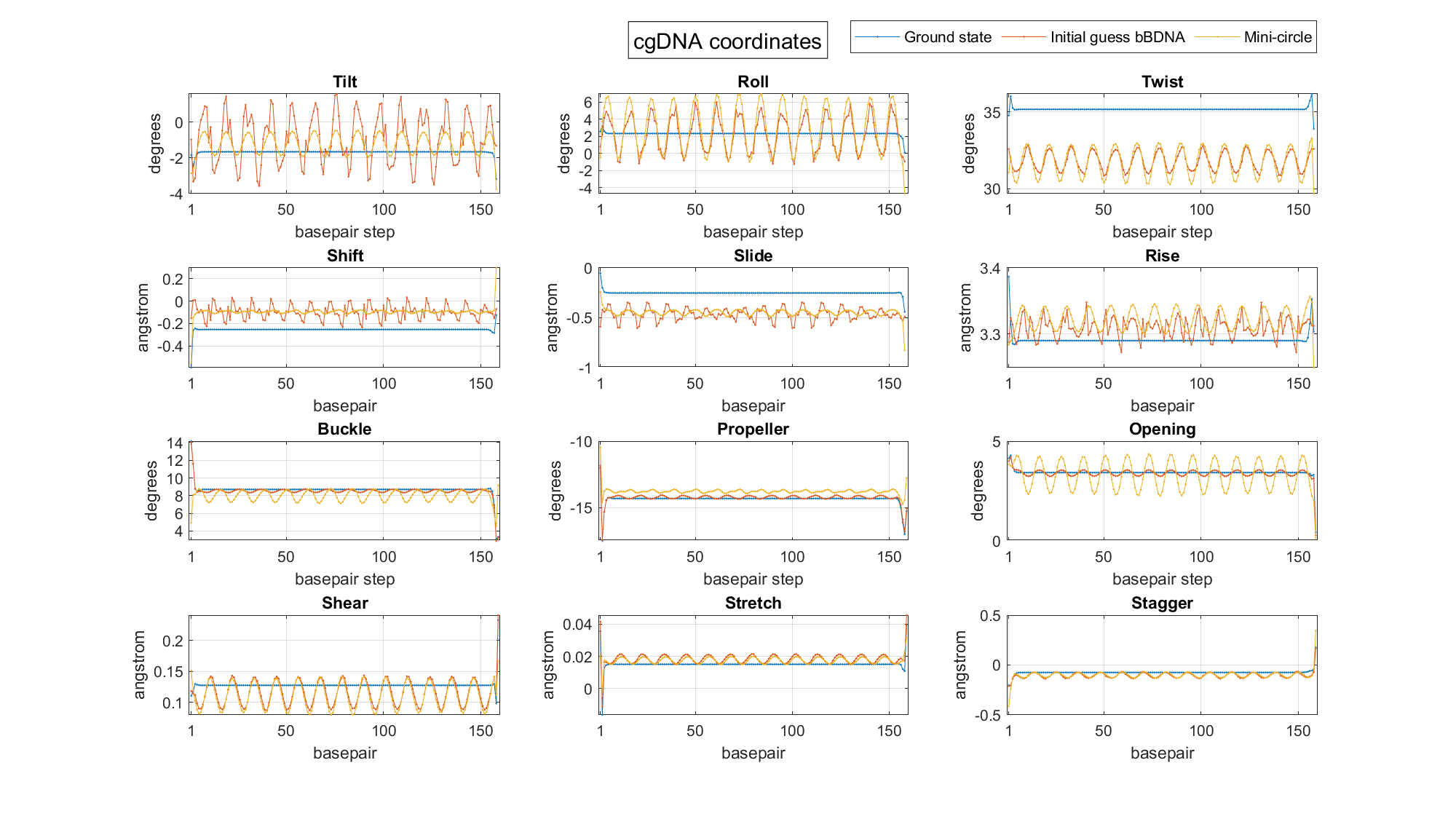

PolyA_2Dsol2_NCCcgDNAmin.fig
PolyA_sol2_NCCcgDNAmin.mat

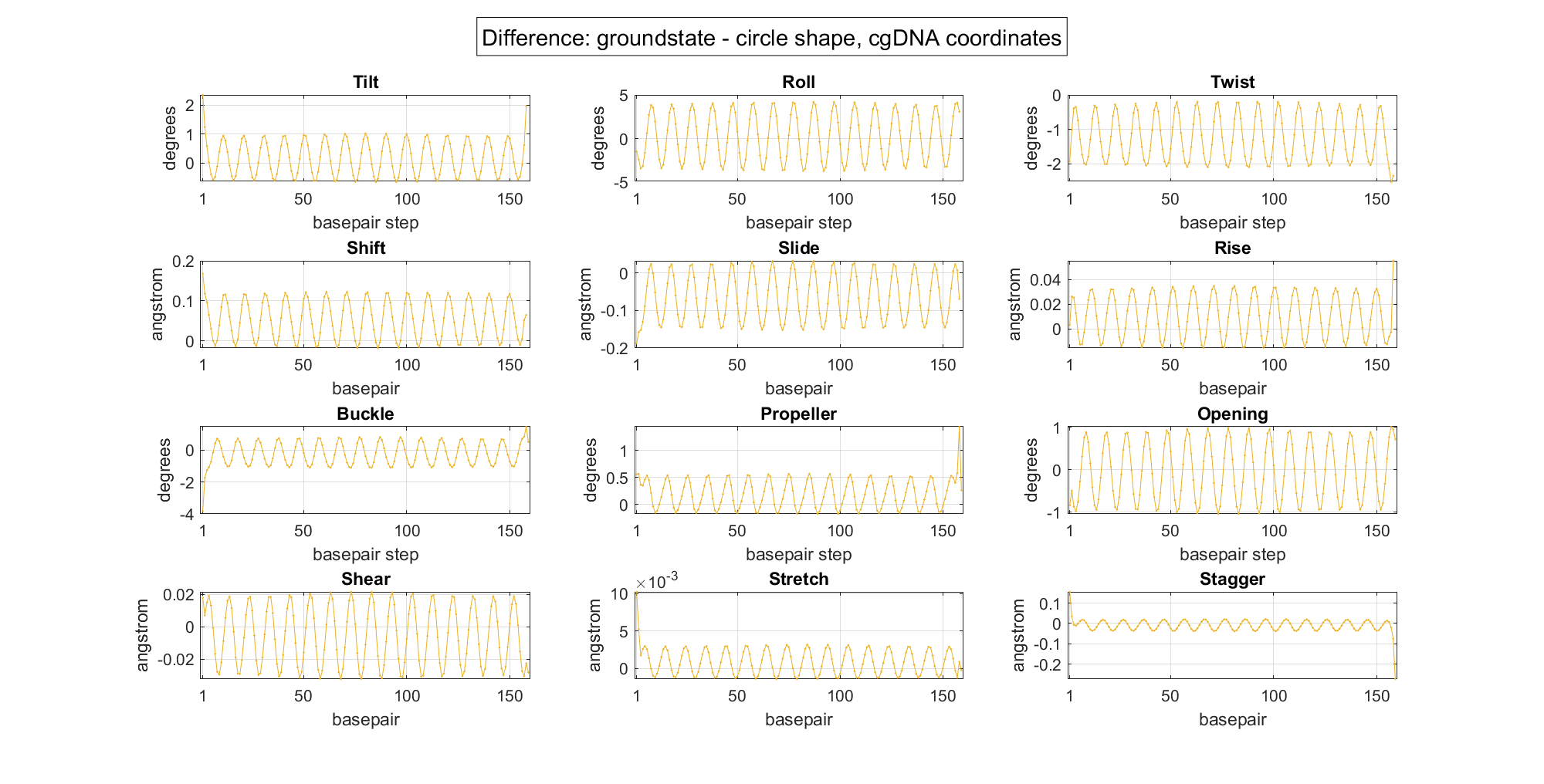

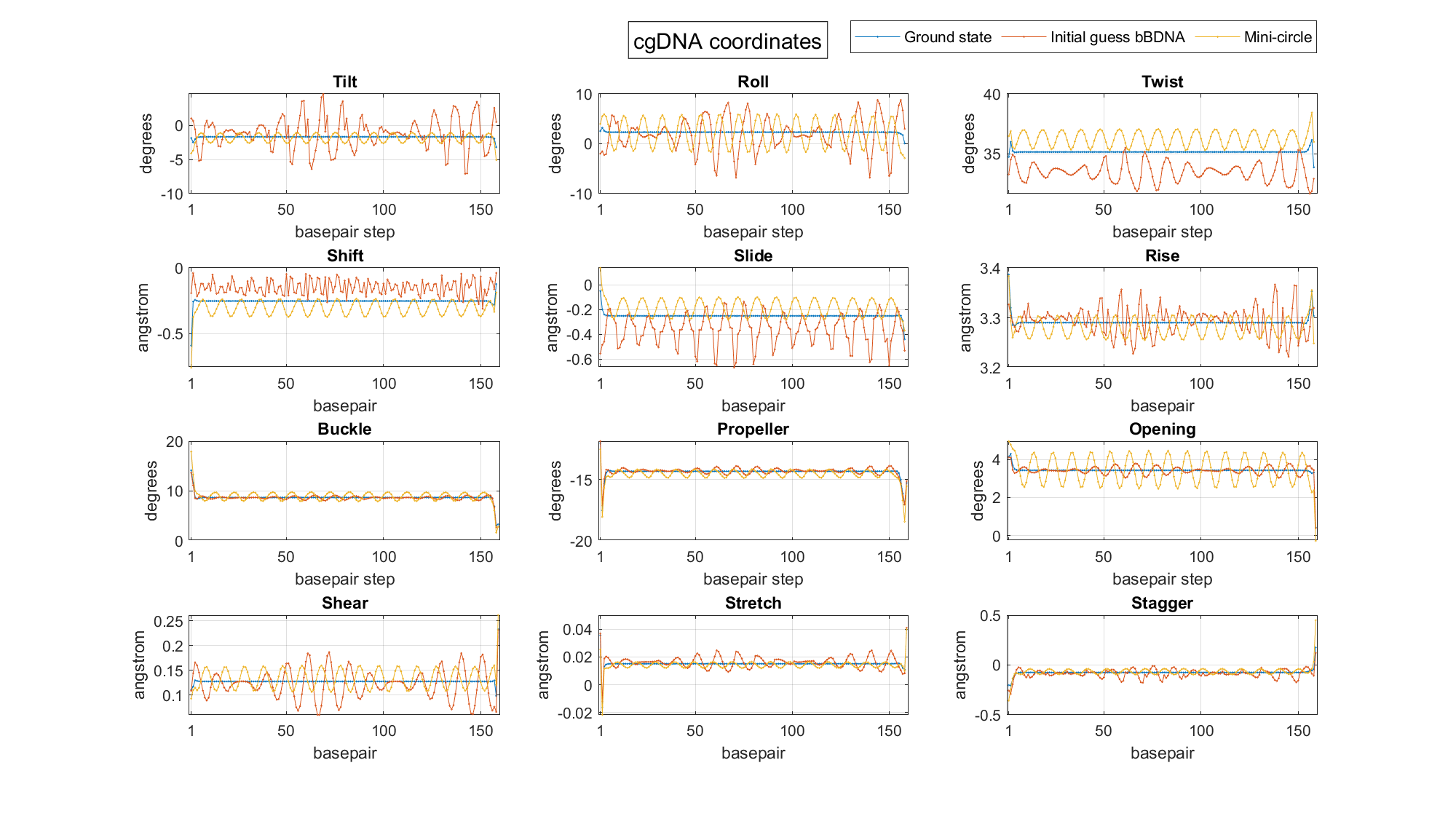

Solution for initial guess C:

Link Energy Smallest Eigenvalue
Initial guess C 16 321 -
Solution C 16 59 5.67e-7



MATLAB figures and saved variables:

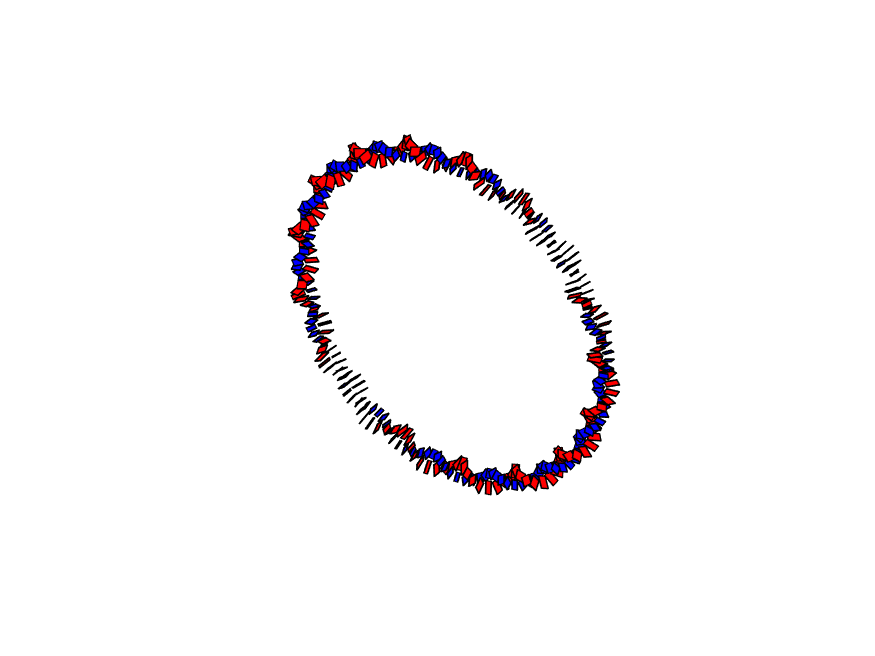

PolyA_3Dsol3_NCCcgDNAmin.fig
PolyA_2Dsol3_NCCcgDNAmin.fig
PolyA_sol3_NCCcgDNAmin.mat

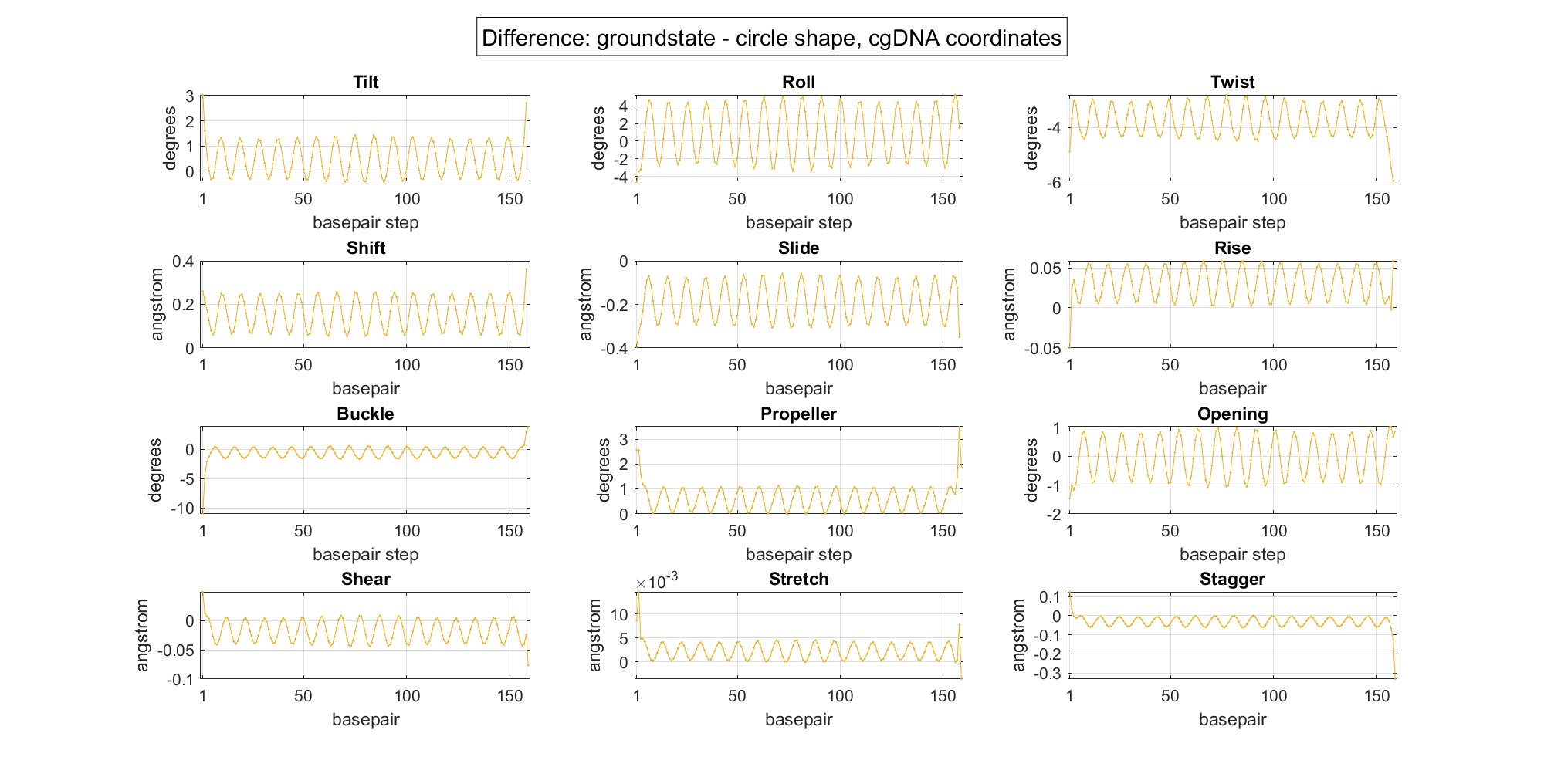

Solution for initial guess D:

Link Energy Smallest Eigenvalue
Initial guess D 17 219 -
Solution D 17 143 6.26e-7



MATLAB figures and saved variables:

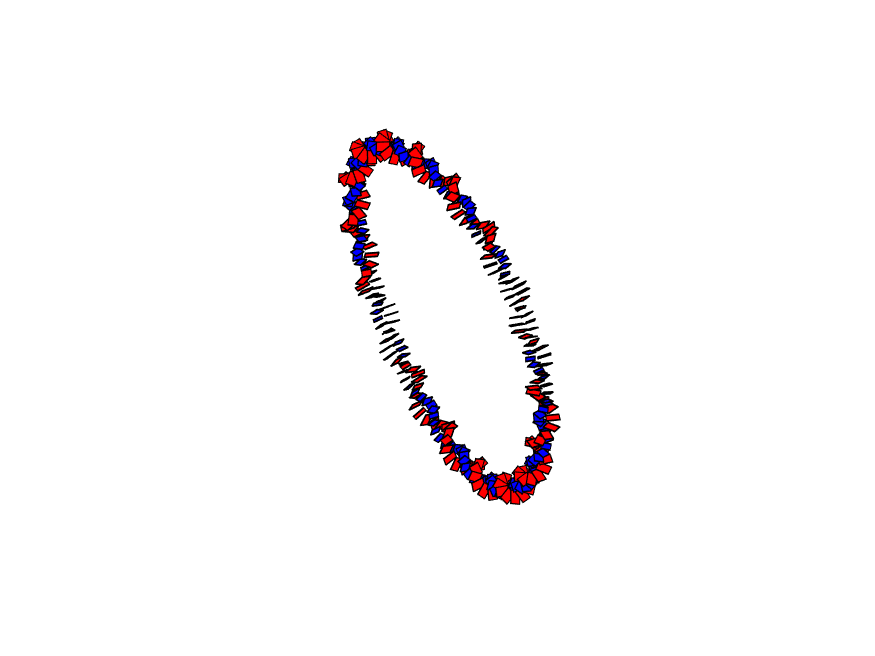

PolyA_3Dsol4_NCCcgDNAmin.fig

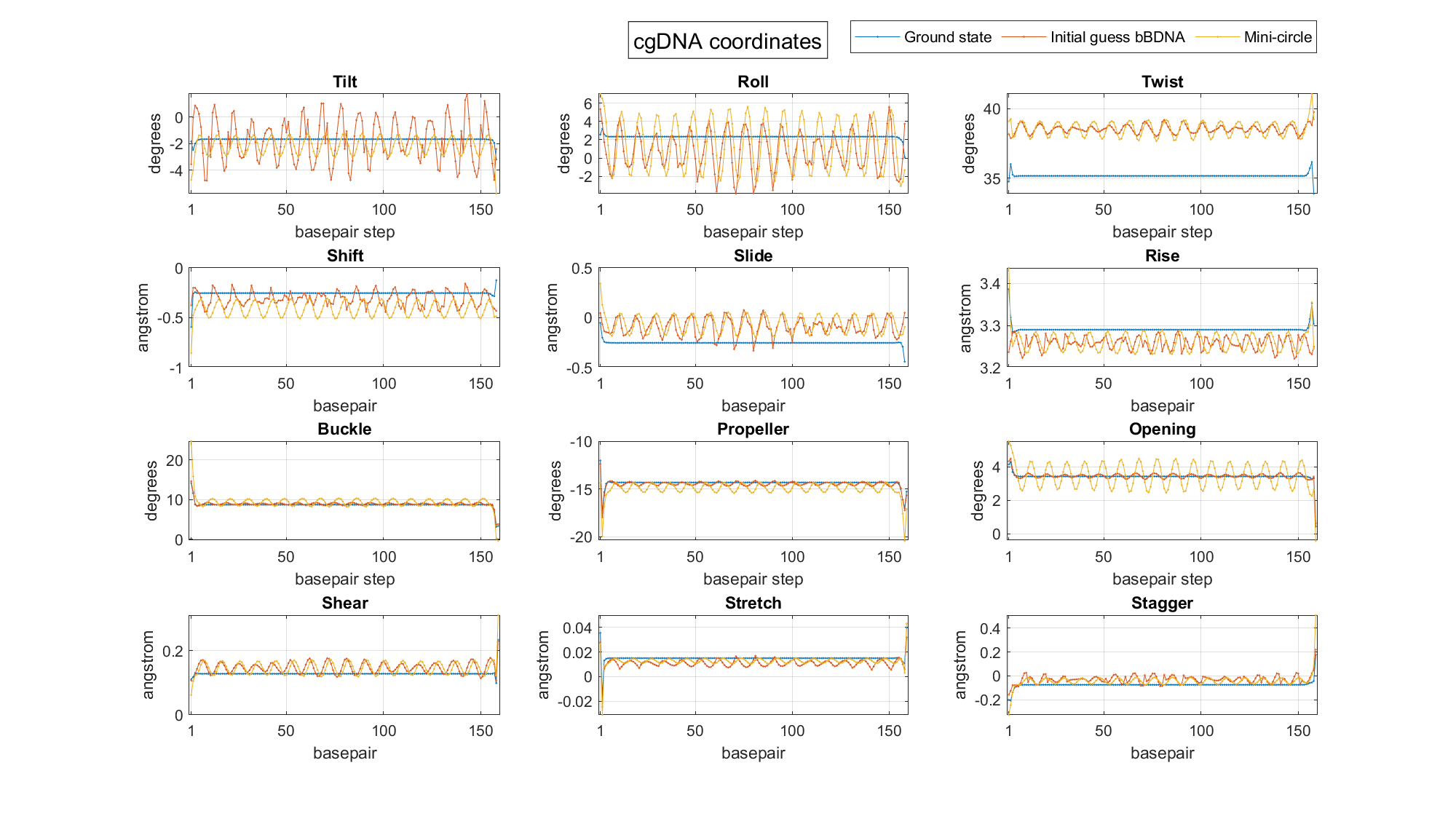

PolyA_2Dsol4_NCCcgDNAmin.fig
PolyA_sol4_NCCcgDNAmin.mat
